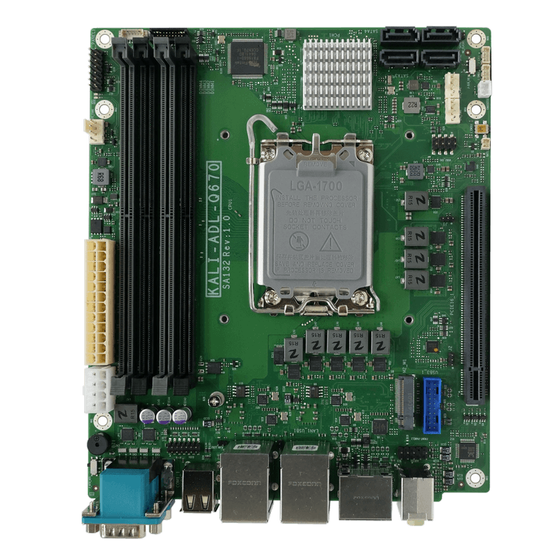

Socket LGA1700, 14th/13th/12th generation Alder Lake-S/Raptor Lake-S, Extended-ITX
【IEI KALI-ADL-Q670 Features】 ■ Supports Extended-ITX standard ■ Dimensions: 200mm x 170mm ■ Compatible with 14th/13th/12th generation i9/i7/i5/i3 Alder Lake-S/Raptor Lake-S processors ■ Supports independent display with maximum resolution of 4K via 1 x HDMI 2.0 and 1 x DP 1.4a ■ 4xDDR5-5200, maximum 192GB ■ Expansion slots ・1 x PCIe x16 (Slot1) with x16 Signal Gen4 ・1 x M.2 M Key PCIE X4 gen3 2280 ■ 2 x 2.5 GbE LAN ■ 4 x USB 3.2 Gen2 (10Gb/s), 4 x USB 2.0, 2 x RS-232/422/485, 4 x SATA 6G/s, 2 x USB 3.2 Gen1 ■ Supports AT/ATX power mode
Inquire About This Product
basic information
Specifications ■CPU: 14th/13th/12th generation Intel Core i9/i7/i5/i3/Pentium/Celeron processors ■Chipset: Q670 ■Memory: 4xDDR5-5200 up to 192GB ■Storage: 4 x SATA 6G/s ■Ethernet: 2 x 2.5 GbE LAN ■Interface: 4 x USB 3.2 Gen2 (10Gb/s), 4 x USB 2.0, 2 x RS-232/422/485, 4 x SATA 6G/s, 2 x USB 3.2 Gen1, 1 x HDMI 2.0, 1 x DP 1.4a ■Operating Temperature: -10°C ~ 65°C ■Dimensions: 200mm x 170mm
Price range
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Factory and building automation / control systems / communication systems / monitoring systems
Line up（1）
| Model number | overview |
|---|---|
| KALI-ADL-Q670-R10 | Extended-ITX SBC supports LGA1700 Intel 12th/13th/14th Generation Core i9/i7/i5/i3, Pentium and Celeron processor, DDR5, Dual displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS |
catalog（1）
Download All Catalogs
