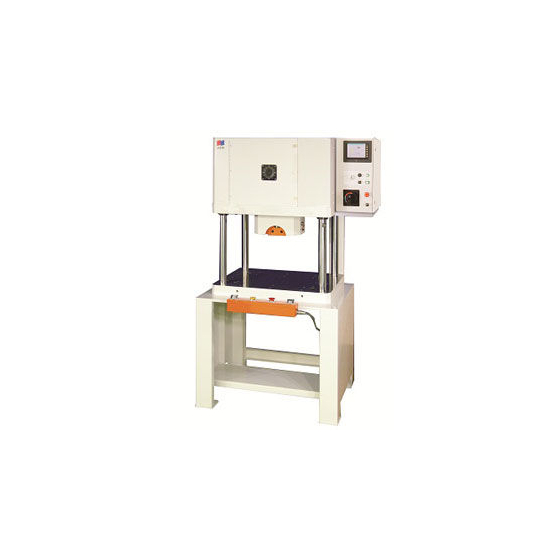

98KN crank-type servo press. Position control. Made to order machine.
The post-frame type excels in rigidity due to its structure, demonstrating remarkable performance in high-precision processing. The bolster, with its large surface area, can adequately accommodate large molds, and the installation of peripheral devices such as feeders is easy, allowing it to be used as part of an automated line. With arbitrary direct signals, synchronization between the ram (slide) and peripheral devices is possible.
Inquire About This Product
basic information
Pressure capacity (kN): (505N) 49 (1000N) 98 Capacity generation point (mm): (505N) 1.2 (1000N) 1.3 Stroke length (mm): (505N) MAX 40 (1000N) MAX 40 Stroke number (SPM): (505N) MAX 130 (1000N) MAX 100 Open height (mm): (505N) 300 (1000N) 300 Die height (mm): (505N) 260 (1000N) 260 Shank hole (mm): (505N) Φ25×50L (1000N) Φ32×60L Adjustment amount (mm): (505N) 25 (1000N) 25 Stroke type: Cutting, incremental motion, safety single stroke, continuous Operating mode: Normal mode, profile mode, virtual mode Operation method: Two-hand operation type, external input start Power supply: (505N) Three-phase AC200V 30A (1000N) Three-phase AC200V 60A Motor output (kW): (505N) AC servo motor 4.0 (1000N) AC servo motor 4.0 Mass (kg): (505N) 950 (1000N) 1300
Price range
Delivery Time
Applications/Examples of results
For more details, please contact us.
Detailed information
-
Specifications
-
Dimension drawing
-
Press capability curve
catalog（3）
Download All Catalogs
