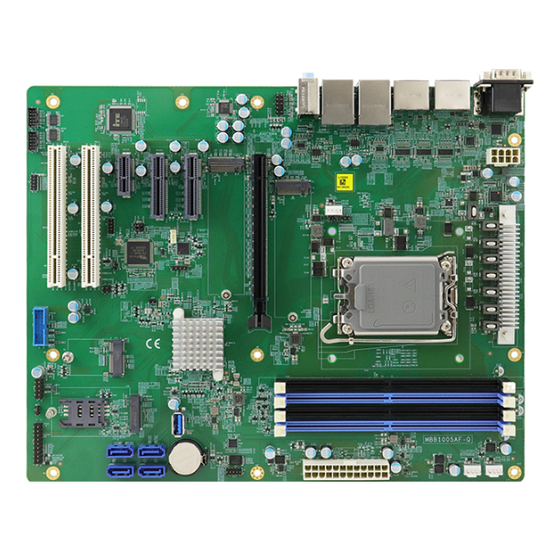

Socket LGA1851, Core Ultra 9/7/5 200S Series, 4x DDR5-5600 up to 192GB
**iBASE MBB1005 Features** ■ Core Ultra 9/7/5 200S Series (Arrow Lake-S) Processor ■ Socket LGA1851 ■ Memory 4x DDR5-5600 up to 192GB ■ Intel I226LM (supports 2.5G and iAMT), Intel I226V (supports 2.5G only) ■ DisplayPort 1x HDMI (2.0b), 3x DisplayPort (1.4a) (DP++) supported ■ 1x PCI-E (x16) [Gen.5.0]; 2x PCI-E (x4) [Gen.4.0]; 1x PCI-E (x1) [Gen.4.0]; 2x PCI expansion slots ■ 5x USB3.2 (Gen2), 2x USB3.2 (Gen1), 2x USB2.0, 4x COM, 4x SATA III ■ 4x M.2, including E-Key (2230), B-Key (3052) and 2x M-Key (2280) ■ Operating temperature range: 0°C to 60°C ■ Dimensions: 305mm x 244mm
Inquire About This Product
basic information
Specifications ■CPU: Core Ultra 9/7/5 200S Series (Arrow Lake-S) Processor ■Memory: 4x DDR5-5600 up to 192GB ■Storage: 4x SATA III, NVM ■Expansion Slots: 1x PCI-E (x16) [Gen.5.0]; 2x PCI-E (x4) [Gen.4.0]; 1x PCI-E (x1) [Gen.4.0]; 2x PCI ■Network: Intel I226LM (supports 2.5G and iAMT), Intel I226V (supports 2.5G only) ■I/O Ports: 5x USB3.2 (Gen2), 2x USB3.2 (Gen1), 2x USB2.0, 4x COM, 4x SATA III ■Operating Temperature Range: 0°C to 60°C ■Dimensions: 305mm x 244mm
Price range
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Factory and Building Automation / Control Systems / Communication Systems / Monitoring Systems
Line up（1）
| Model number | overview |
|---|---|
| MBB1005AF-Q | LGA1851 Q870 ATX Motherboard w /HDMI, 3x DisplayPort, 2x 2.5GbE, 4x SATA, RAID, iAMT (19.0), dTPM (2.0), iSMART(4.0) |
