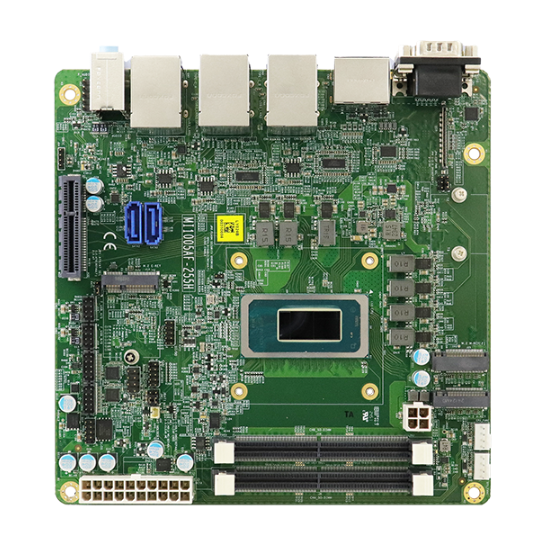

iBASE, Core Ultra 9 285H/Ultra 7 255H/Ultra 5 225H(Arrow Lake)
【iBASE MI1005 Features】 ■Dimensions: 170mm x 170mm ■Supports Core Ultra 9 285H/Ultra 7 255H/Ultra 5 225H (Arrow Lake) processors ■Supports independent displays via 1x eDP, 1x HDMI, 1x DisplayPort (1.4a) (DP++) + 2x Type-C ■2x DDR5 up to 96GB ■Expansion Slots ・1x PCI-E (x4) [Gen 4] ・2x M.2 (M-Key, type: 2280 + 2242, PCI-E (4x) Gen.4) ・1x M.2 (E-Key, type: 2230, USB 2.0 + PCI-E (1x) Gen.4) ■LAN 1: Intel I226LM, supports 2.5G and iAMT; LAN 2/LAN 3: Intel I226V, supports 2.5G only ■4x USB 3.2 (Type A), 2x USB Type-C, 4x USB 2.0, 4x COM, 2x SATA III
Inquire About This Product
basic information
Specifications ■CPU: Core Ultra 9 285H/Ultra 7 255H/Ultra 5 225H (Arrow Lake) Processor ■Memory: 2x DDR5 up to 96GB ■Ethernet: LAN 1: Intel I226LM, supports 2.5G and iAMT; LAN 2/LAN 3: Intel I226V, supports only 2.5G ■Interface: 1x eDP, 1x HDMI, 1x DisplayPort (1.4a) (DP++) +, 2x Type-C, 4x USB 3.2 (Type A), 2x USB Type-C, 4x USB 2.0, 4x COM, 2x SATA III ■Expansion Slots ・1x PCI-E (x4) [Gen 4] ・2x M.2 (M-Key, type: 2280 + 2242, PCI-E (4x) Gen.4) ・1x M.2 (E-Key, type: 2230, USB 2.0 + PCI-E (1x) Gen.4) ■Operating Temperature: 0°C ~ 60°C ■Dimensions: 170mm x 170mm
Price range
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Factory and Building Automation / Control Systems / Communication Systems / Monitoring Systems
Line up（3）
| Model number | overview |
|---|---|
| MI1005AF-285H | Intel Core Ultra 9 285H CPU onboard MiniITX board w/ eDP, HDMI, 2x DisplayPort, 2x Type-C (for DP & USB 3.2), 3x 2.5GbE, 2x SATA, iAMT (19.0), fTPM (2.0) |
| MI1005AF-255H | Intel Core Ultra 7 255H CPU onboard MiniITX board w/ eDP, HDMI, 2x DisplayPort, 2x Type-C (for DP & USB 3.2), 3x 2.5GbE, 2x SATA, iAMT (19.0), fTPM (2.0) |
| MI1005AF-225H | Intel Core Ultra 5 225H CPU onboard MiniITX board w/ eDP, HDMI, 2x DisplayPort, 2x Type-C (for DP & USB 3.2), 3x 2.5GbE, 2x SATA, iAMT (19.0), fTPM (2.0) |
