Raspberry Pi Serial Communication Expansion Board

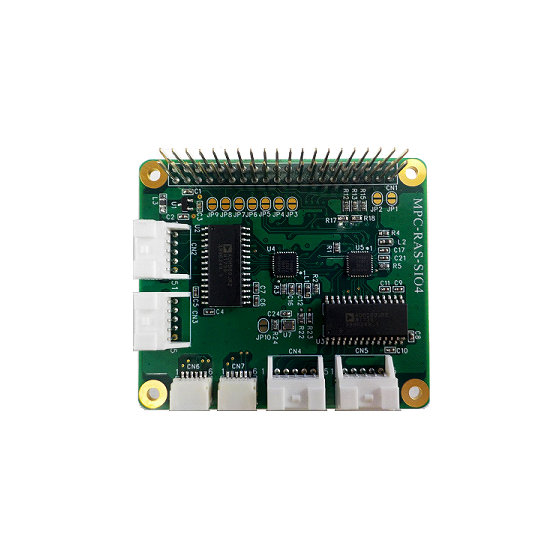

The MPC-RASSIO4 is a serial communication expansion board developed for the Raspberry Pi. It allows for the addition of 4 channels of UART/RS232C serial communication via SPI/I2C interface with the Raspberry Pi. (RoHS compliant.) ◆ Features 〇 Connection with Raspberry Pi Connects to the 40-pin expansion connector of the Raspberry Pi and communicates via I2C or SPI. 〇 SPI Mode Supports SPI clock rate of up to 26MHz (max). SPI Mode 0 〇 I2C Mode Our product operates at a data transfer speed of 1MHz frequency (SCL). I2C slave mode supports 7-bit addressing. *The default data transfer speed for I2C on the Raspberry Pi is 100kHz. Please change the data transfer speed setting on the Raspberry Pi to 1MHz for use. 〇 Others ◎ Each channel is equipped with a 128-byte FIFO buffer (for both transmitter and receiver). Supports baud rates for serial communication up to 115200bps. ◎ Automatic hardware flow control using RTS/CTS is possible with configuration.
Inquire About This Product
basic information
Board size: 65mm x 56mm Communication standards (to Raspberry Pi): SPI/I2C Communication standards (to external interface): UART (RS232C or TTL) External input/output signals: RS232C - TXD, RXD, RTS, CTS TTL - TXD, RXD Number of ports: 4 ports Data bit length: 5/6/7/8 bit Parity check: none/even/odd/forced (when Multidrop Mode is set) Stop bit length: 1/1.5/2 bit External interface connector: RS232C level (CN2, CN3, CN4, CN5) TTL level (CN6, CN7) Connector type: Board side - S05B-PASK-2 (CN2, CN3, CN4, CN5) SM06B-NSHSS-TB (CN6, CN7) Cable: to be ordered separately Communication speed: 4800bps to 115200bps FIFO buffer: 128 byte Power supply: +5V (supplied from the bus) Current consumption: 65mA (no load) Operating temperature range: 0°C to 60°C
Price information
¥14,800 (excluding tax)
Price range
P2
Delivery Time
Applications/Examples of results
Expansion of UART/RS232C serial communication by 4 channels through SPI/I2C interface with Raspberry Pi.
