Explosion-proof seismic monitoring device for petrochemical, hydrogen plants, and manufacturing factories.

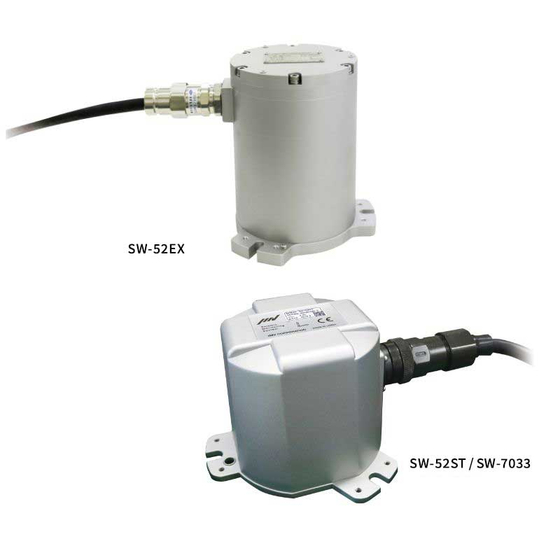

SW-52EX/SW-52ST/SW-7033
Equipped with a servo-type pickup capable of detecting minute seismic vibrations.
This is an earthquake monitoring device that adopts a high-precision servo-type accelerometer, providing control alarm output during an earthquake. The SW-52EX can be used in gas and dust explosion-proof areas such as petrochemical, hydrogen plants, and manufacturing factories, minimizing secondary disasters caused by earthquakes. Certification Ex db IIB+H2 T6 Gb (IECEx, ATEX) Ex d IIB+H2 T6 Gb (TIIS) Ex tb IIIC T120℃ Db (IECEx, ATEX, TIIS) Applicable Standards IECEx IEC 60079-0:2011 IEC 60079-1:2014-06 IEC 60079-31:2013 ATEX EN 60079-0:2012+A11 EN 60079-1:2014 EN 60079-31:2014 TIIS Factory Electrical Equipment Explosion Protection Guidelines (International Harmonization Technical Guidelines) JNIOSH－TR－46－1:2015 (Part 1 - General Provisions) JNIOSH－TR－46－2:2015 (Part 2 - Pressure Resistance) JNIOSH－TR－46－9:2015 (Part 9 - Dust from Containers)
Inquire About This Product
basic information
**Main Specifications** Detection Method: Omnidirectional detection using vector synthesized acceleration Built-in Pickup: Force balance type servo acceleration pickup Measurement Frequency Range: 0.3 to 10 Hz ±10% **Acceleration Measurement** Maximum Measurement Range: 0 to 5000 Gal (3-component vector synthesized value) NS, EW Direction: ±3000 Gal / UD Direction: +2000 to -3000 Gal Frequency Range: 0.3 to 10 Hz ±10% **SI Value Measurement** Maximum Measurement Range: 0 to 5000 Kine (3-component vector synthesized value), period 2 seconds, 5000 Gal, damping 2% Period Range: 0.1 seconds to 2.5 seconds Damping: 2~30% Low Pass Filter: 30 Hz (-3dB), 4th order Butterworth characteristic A/D Converter: 24-bit, 100 Hz sampling Seismic Intensity Level Calculation Method: Japan Meteorological Agency seismic intensity scale **Alarm** Earthquake Alarm: Outputs when an earthquake is detected and the measured value exceeds the set level FAULT Alarm: Outputs upon detection of abnormalities in hardware self-diagnosis, pickup self-diagnosis, pickup test, or power failure of the device *For more detailed specifications, please refer to the related links at the top of this page.*
Price range
Delivery Time
Applications/Examples of results
Prevention of secondary disasters during earthquakes in gas and dust explosion-proof areas such as petrochemical, hydrogen plants, and manufacturing factories.
Detailed information
catalog（3）
Download All Catalogs![[IMV] SW-52EX_Specifications](https://image.mono.ipros.com/public/catalog/image/113492/IPROS11292129709970712012.jpeg?w=120&h=170)
![[IMV] SW-52ST_Specification Document](https://image.mono.ipros.com/public/catalog/image/113492/IPROS7883933203488043893.jpeg?w=120&h=170)
![[IMV] SW-7033_Specification Document](https://image.mono.ipros.com/public/catalog/image/113492/IPROS14651780629212249904.jpeg?w=120&h=170)
