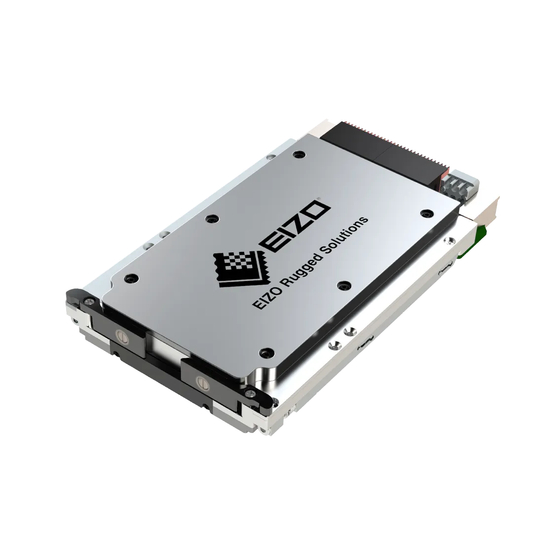

SOSA-compliant 3U VPX video capture and GPGPU card (based on NVIDIA RTX 2000 Ada generation)
This is a robust 3U OpenVPX video capture and GPGPU processing card designed for mission-critical C5ISR and high-performance embedded computing (HPEC) applications. The Condor GR6S-AD2000, equipped with the NVIDIA RTX 2000 Ada GPU, is the ideal solution for ultra-low latency video capture and delivery in sensor fusion, object detection, and automatic target recognition (ATR) applications. Based on the NVIDIA Ada Lovelace architecture, it features 3,072 CUDA cores, 24 Tensor cores, and 96 RT cores, delivering exceptional performance in parallel computing, AI workloads, and advanced visualization. The 8GB GDDR6 memory with error correction code (ECC) ensures reliable data integrity and stability even in harsh environments. It supports encoding/decoding of H.265 (HEVC), H.264 (MPEG4/AVC), and AV1. Additionally, it is compatible with NVIDIA GPUDirect RDMA, achieving reduced latency and improved data transfer speeds in real-time processing.
Inquire About This Product
basic information
【Main Specifications】 GPU/Memory: 3072 CUDA cores, 96 Tensor cores, 24 RT cores. 8 GB GDDR6 memory (ECC supported), memory bandwidth 256 GB/s Performance: Up to 14.5 TFLOPS processing power in FP32 single precision Video I/O: 12G-SDI x4 input, 12G-SDI x 2 (maximum) PCIe: Supports Gen 4 x16. Equipped with an internal Switchtec PFX PCIe Gen 4 switch 【Standards and Environmental Performance】 Standards Compliance: Supports two types of profiles compliant with SOSA(TM) (14.6.11, 14.6.13) Operating Environment: Compliant with VITA 47.1 CC4/CCW4. Operating Temperature: -40°C to +85°C Power Consumption: 50 to 110W (conductive cooling) Software: Supports CUDA, OpenCLTM, DirectX12, Vulkan 1.4 Ideal for high-resolution multi-video processing and real-time AI inference.
Price range
Delivery Time
Applications/Examples of results
Military Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance Embedded Systems
