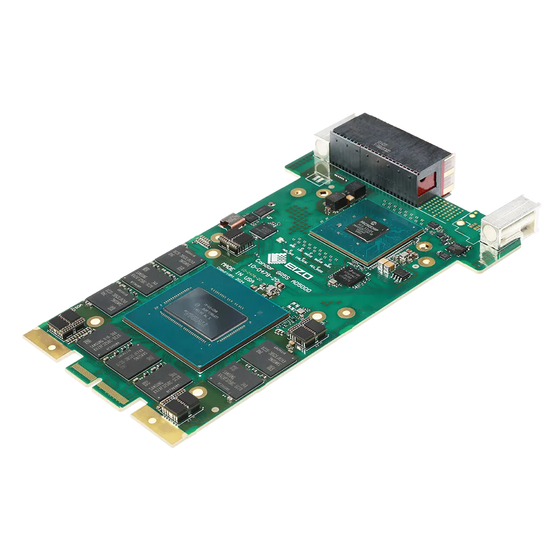

SOSA-aligned 3U VPX graphics and GPGPU card (equipped with NVIDIA RTX 5000 Ada generation)
The Condor GR5S-AD5000 is an extremely robust 3U OpenVPX standard video graphics and GPGPU processing card equipped with an NVIDIA RTX 5000 GPU (Ada Lovelace architecture). This card features a powerful core configuration with 9,728 CUDA cores, 304 Tensor cores, and 76 RT cores, and it combines high reliability and computational performance with 16 GB of GDDR6 memory with ECC (Error Correction Code). It adopts PCI Express Gen 4 for its interface, and the support for GPUDirect RDMA significantly reduces data transfer latency. Additionally, it is developed in alignment with the SOSA standard, ensuring interoperability and scalability in military and aerospace applications. The cooling method offers both conduction cooling (CC) and airflow-through (AFT) variations to meet stringent thermal requirements. This card provides an unparalleled solution for data-intensive tasks, delivering exceptional efficiency and responsiveness.
Inquire About This Product
basic information
Form Factor/Cooling: 3U VPX Form Factor. 1" Pitch conduction cooling (VITA 48.2) and 1.2"/1.5" Pitch airflow-through (AFT, VITA 48.8) Processor: NVIDIA RTX 5000 GPU Memory: 16 GB GDDR6 (ECC supported, 256-bit interface). Memory bandwidth is 576 GB/s Computing Power: 9,728 CUDA cores, 304 Tensor cores, 76 RT cores. Single precision floating point performance up to 42.6 TFOPS FP32 Connection: PCIe Gen 4 Data Transfer: NVIDIA GPUDirect RDMA, NVENC/NVDEC supported Video: H.265/H.264/AV1 hardware encoding & decoding supported Operating Temperature: -40°C to 71°C (RC4 conduction cooling) and -40°C to 55°C (FC2 AFT) Durability (MIL-STD-810): Shock resistance 40 g, vibration resistance 0.1 g²/Hz OS: Windows or Linux (x86)
Price range
Delivery Time
Applications/Examples of results
Military Avionics Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance (ISR) Embedded Systems
