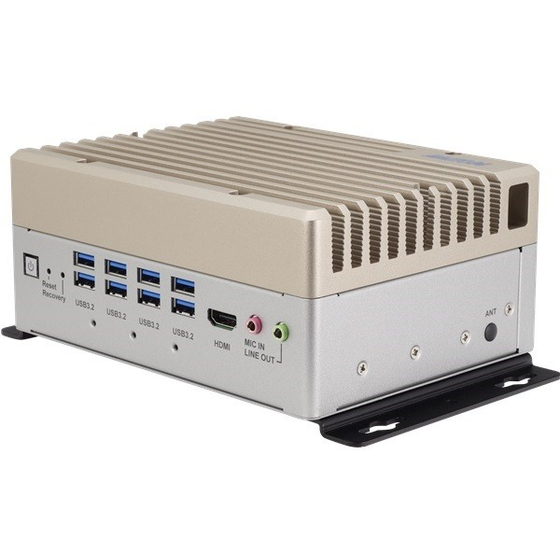

Equipped with USB3.2×8 and serial×2. An industrial AI PC that adopts AGX Orin, allowing for seamless integration of peripherals.
The OXER-8642AI is an interface-enhanced AI edge PC designed for a large number of device connections. It consolidates eight USB 3.2 Gen2 (10Gbps) ports on the front, allowing for simultaneous connections of cameras, sensors, and measuring instruments. Additionally, it is equipped with two LAN ports and two RS-232/422/485 ports (one of which shares with CANBus FD), making it suitable for integrated control in AGVs, inspections, and FA lines. It features a Jetson AGX Orin (32GB/64GB) and LPDDR5 memory, enabling stable operation of AI processing and external device control simultaneously. With Jetpack 5.1.1 pre-installed, setting up the development environment is also smooth. It ensures expandability with M.2 E-Key, SMA antenna holes, and a 2.5-inch SSD bay. For more details, please refer to the datasheet.
Inquire About This Product
basic information
【AI Solution】NVIDIA Jetson AGX Orin 32GB/64GB 【CPU】AGX Orin 32GB: 8-core Arm Cortex-A78AE, AGX Orin 64GB: 12-core Arm Cortex-A78AE 【Memory】32GB/64GB LPDDR5 onboard memory 【Storage】64GB eMMC onboard (*OS boot) 【Display】 HDMI2.0 x 1 【Front I/O】USB3.2 Gen2 (Type-A) x 8 (independent 10Gbps compatible), HDMI x 1, MIC IN x 1, LINE OUT x 1, reset button, recovery button, power button 【Rear I/O】LAN x 2, OS Flash, RS-232/422/485 (Rx/Tx) x 2 (one port shared with CANBus FD), 2-pin power terminal, SMA antenna holes x 2 【Expansion】M.2 2230 E-Key x 1 (Wifi/BT), 2.5-inch SATA SSD drive bay x 1 For more details, please refer to the datasheet.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: Edge PCs, AGVs, drones, robots, media centers, IoT edge devices, IoT controllers, AI, digital signage, etc.
Line up（6）
| Model number | overview |
|---|---|
| 【BOXER-8642AI-A1-5.1】 | Equipped with Nvidia Jetson AGX Orin 32GB, on-board 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed. |
| 【BOXER-8642AI-A1-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter. |
| 【BOXER-8642AI-A1-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R. |
| 【BOXER-8642AI-A2-5.1】 | Equipped with Nvidia Jetson AGX Orin 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed. |
| 【BOXER-8642AI-A2-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter |
| 【BOXER-8642AI-A2-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R |
