Accelerate barcode reading, package classification, and shipping management. An edge PC optimized for AI processing in logistics environments.

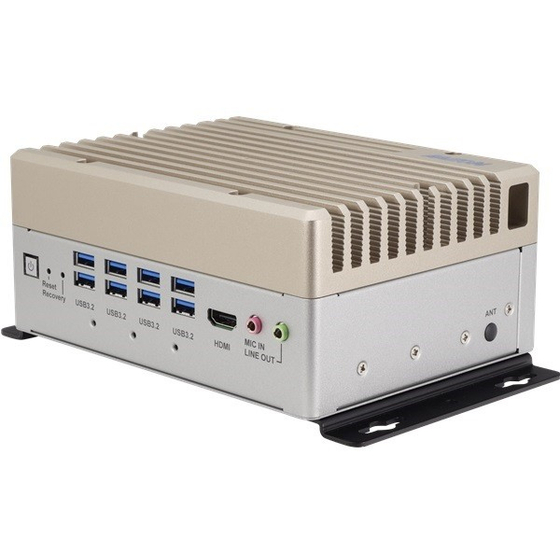

The BOXER-8642AI, optimized for logistics and warehousing, allows simultaneous connection of cameras and scanners with its numerous USB ports. Thanks to the GPU performance of the Jetson AGX Orin, AI processing for package recognition, sorting, and automatic inspection can be executed in real-time on-site. The fanless design that supports stable operation is also a key feature. Please refer to the datasheet for detailed specifications.
Inquire About This Product
basic information
【AI Solution】NVIDIA Jetson AGX Orin 32GB/64GB 【CPU】AGX Orin 32GB: 8-core Arm Cortex-A78AE, AGX Orin 64GB: 12-core Arm Cortex-A78AE 【Memory】32GB/64GB LPDDR5 onboard memory 【Storage】64GB eMMC onboard (*OS boot) 【Display】 HDMI2.0 x 1 【Front I/O】USB3.2 Gen2 (Type-A) x 8 (independent 10Gbps support), HDMI x 1, MIC IN x 1, LINE OUT x 1, reset button, recovery button, power button 【Rear I/O】LAN x 2, OS Flash, RS-232/422/485 (Rx/Tx) x 2 (one port shared with CANBus FD), 2-pin power terminal, SMA antenna holes x 2 【Expansion】M.2 2230 E-Key x 1 (Wifi/BT), 2.5-inch SATA SSD drive bay x 1 For more details, please refer to the datasheet.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: Edge PCs, AGVs, drones, robots, media centers, IoT edge devices, IoT controllers, AI, digital signage, etc.
Line up（6）
| Model number | overview |
|---|---|
| 【BOXER-8642AI-A1-5.1】 | Nvidia Jetson AGX Orin with 32GB, equipped with 32GB LPDDR5 + 64GB eMMC on board, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, pre-installed with Jetpack 5.1.1. |
| 【BOXER-8642AI-A1-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter. |
| 【BOXER-8642AI-A1-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R. |
| 【BOXER-8642AI-A2-5.1】 | Equipped with Nvidia Jetson AGX Orin 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed. |
| 【BOXER-8642AI-A2-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, equipped with 64GB LPDDR5 + 64GB eMMC onboard, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, pre-installed with Jetpack 5.1.1 + Power Adapter. |
| 【BOXER-8642AI-A2-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R. |
