An I/O configuration that is easy to integrate with equipment. An industrial AI edge PC that is optimal for inspection, robot control, and process monitoring.

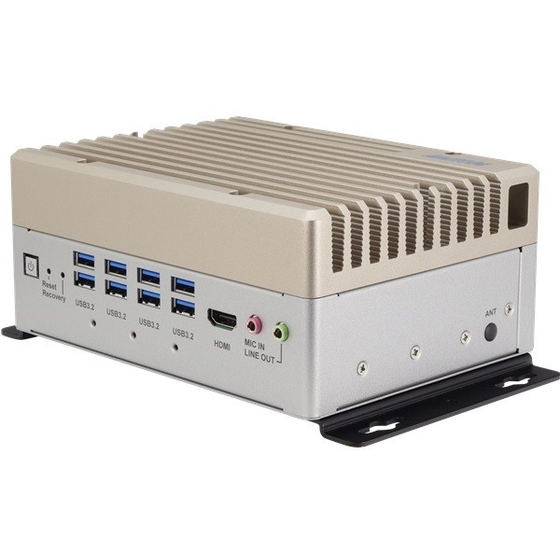

The BOXER-8642AI, which supports automation in FA (Factory Automation) sites, comes standard with industrial serial, 2 LAN ports, and 8 USB ports. It easily connects with cameras and PLCs, enabling high-speed execution of AI processing for visual inspection, process monitoring, and robot control on-site. Its fanless design allows for long-term stable operation even in factory environments. Please refer to the data sheet for detailed specifications.
Inquire About This Product
basic information
【AI Solution】NVIDIA Jetson AGX Orin 32GB/64GB 【CPU】AGX Orin 32GB: 8-core Arm Cortex-A78AE, AGX Orin 64GB: 12-core Arm Cortex-A78AE 【Memory】32GB/64GB LPDDR5 onboard memory 【Storage】64GB eMMC onboard (*OS boot) 【Display】 HDMI2.0 x 1 【Front I/O】USB3.2 Gen2 (Type-A) x 8 (independent 10Gbps support), HDMI x 1, MIC IN x 1, LINE OUT x 1, reset button, recovery button, power button 【Rear I/O】LAN x 2, OS Flash, RS-232/422/485 (Rx/Tx) x 2 (one port shared with CANBus FD), 2-pin power terminal, SMA antenna holes x 2 【Expansion】M.2 2230 E-Key x 1 (Wifi/BT), 2.5-inch SATA SSD drive bay x 1 For more details, please refer to the datasheet.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: Edge PCs, AGVs, drones, robots, media centers, IoT edge devices, IoT controllers, AI, digital signage, etc.
Line up（6）
| Model number | overview |
|---|---|
| 【BOXER-8642AI-A1-5.1】 | Equipped with Nvidia Jetson AGX Orin 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed. |
| 【BOXER-8642AI-A1-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter. |
| 【BOXER-8642AI-A1-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R. |
| 【BOXER-8642AI-A2-5.1】 | Equipped with Nvidia Jetson AGX Orin 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, pre-installed with Jetpack 5.1.1. |
| 【BOXER-8642AI-A2-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter. |
| 【BOXER-8642AI-A2-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R |
