Scalability considering implementation on the device. Processing inspection, control, and analysis AI all in one with AGX Orin.

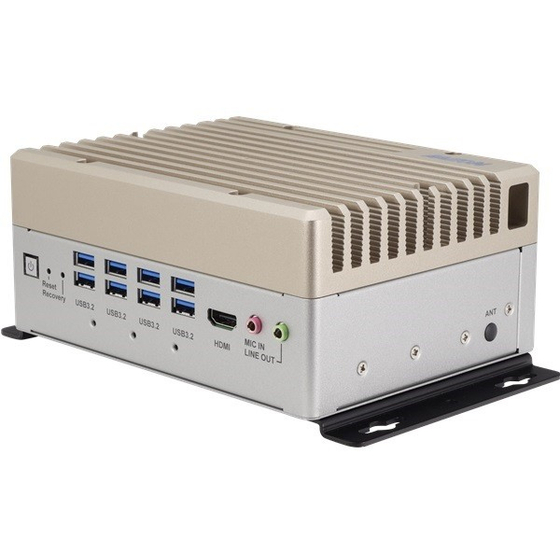

The BOXER-8642AI, suitable for MA (Manufacturing Equipment Integration) applications, features a design focused on expandability with M.2 E-Key, a 2.5-inch SSD bay, and SMA antenna holes. With the high parallel computing performance of the Jetson AGX Orin, it can simultaneously perform image analysis, control AI, and recording processing within the device. It also supports long-term supply, making it an ideal AI controller for equipment integration. Please refer to the datasheet for detailed specifications.
Inquire About This Product
basic information
【AI Solution】NVIDIA Jetson AGX Orin 32GB/64GB 【CPU】AGX Orin 32GB: 8-core Arm Cortex-A78AE, AGX Orin 64GB: 12-core Arm Cortex-A78AE 【Memory】32GB/64GB LPDDR5 onboard memory 【Storage】64GB eMMC onboard (*OS boot) 【Display】HDMI2.0 x 1 【Front I/O】USB3.2 Gen2 (Type-A) x 8 (independent 10Gbps support), HDMI x 1, MIC IN x 1, LINE OUT x 1, reset button, recovery button, power button 【Rear I/O】LAN x 2, OS Flash, RS-232/422/485 (Rx/Tx) x 2 (1 port shared with CANBus FD), 2-pin power terminal, SMA antenna holes x 2 【Expansion】M.2 2230 E-Key x 1 (Wifi/BT), 2.5-inch SATA SSD drive bay x 1 For more details, please refer to the datasheet.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: Edge PCs, AGVs, drones, robots, media centers, IoT edge devices, IoT controllers, AI, digital signage, etc.
Line up（6）
| Model number | overview |
|---|---|
| 【BOXER-8642AI-A1-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, pre-installed with Jetpack 5.1.1. |
| 【BOXER-8642AI-A1-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter. |
| 【BOXER-8642AI-A1-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R. |
| 【BOXER-8642AI-A2-5.1】 | Equipped with Nvidia Jetson AGX Orin 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed. |
| 【BOXER-8642AI-A2-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter. |
| 【BOXER-8642AI-A2-WIFI-AC-5.1】 | Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R. |
