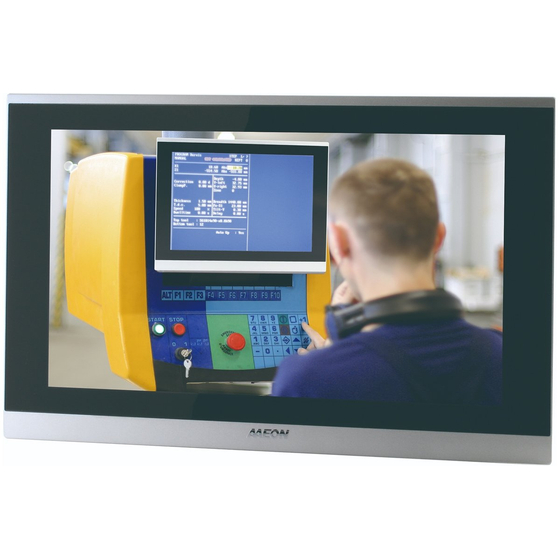

Fanless × Wide power input for stable operation! Panel PC equipped with Intel N50/N97 suitable for FA sites.
The OMNI-2155-ADN, designed for FA systems, supports a wide range power supply of 9 to 30V and offers the flexibility needed for device integration. Its fanless design reduces the risk of dust intrusion, ensuring stable operation even on continuous automation lines. Equipped with three 2.5GbE ports and RS-232/422/485, it is configured for easy connection with PLCs and various control devices. It also has sufficient performance for setting screens and control data display processing, contributing to improved operational efficiency across the entire FA site.
Inquire About This Product
basic information
【Maximum Resolution】1366×768 / 1920×1080 【Display Colors】16.2M/16.7M 【Brightness (cd/m²)】400/450 【Viewing Angle (H-V)】170/130, 178/178 【Touchscreen】Projected capacitive multi-touch 【Memory】DDR5 4800 MHz SO-DIMM slot ×1 (up to 96GB) (sold separately) 【Storage】2.5-inch SATA ×1 (SATA 6Gb/s) / Full-size mPCIe 1 (PCIe [x1] / SATA compatible) (sold separately) 【Expansion】M.2 3052 B-Key ×1 with Nano SIM, M.2 2230 E-Key ×1 【I/O】USB 3.2 Gen 2 (Type-A) ×2, USB 2.0 ×2, RS-232/422/485 ×2, HDMI 1.4b ×1, 2.5GbE ×3, Power switch ×1 【Supported OS】Win 10/11 【Dimensions (W×D×H) (mm)】420×264×73 【Power Input】DC 9~30V (terminal block) 【Mounting Method】Panel mount/VESA 100 *Memory, storage, and OS sold separately.
Price information
Open price
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（5）
| Model number | overview |
|---|---|
| 【OMNI-2155HTT-ADN-A1】 | 15.6-inch fanless touch panel PC with Intel N50 processor, DC 9~30V, 170° (H) / 130° (V), capacitive touch model. |
| 【OMNI-2155HTT-ADN-A2】 | 15.6-inch fanless touchscreen PC with Intel N97 processor, DC 9~30V, 170°(H)/130°(V), capacitive touch model. |
| 【OMNI-2155HDT-ADN-A1】 | 15.6-inch fanless touch panel PC with Intel N50 processor, DC 9~30V, 178° (H)/178° (V), capacitive touch model. |
| 【OMNI-2155HDT-ADN-A2】 | 15.6-inch fanless touchscreen PC equipped with Intel N97 processor, DC 9~30V, 178°(H)/178°(V), capacitive touch model. |
| 【AC adapter set for OMNI-2155-ADN】 | OMNI-2155-ADN with AC adapter + cable set |
