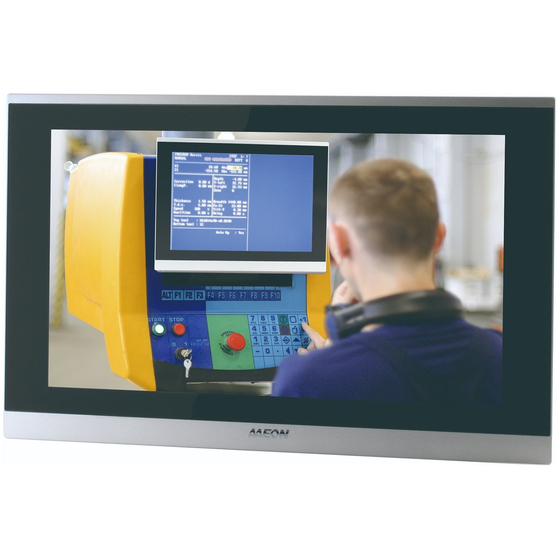

Optimal for information display with high-brightness LCD and abundant video outputs! Tough panel PC for signage.
The OMNI-2155-ADN features a high brightness display of 400 to 450 cd/m², providing ideal visibility for signage applications such as indoor installations, factory guidance, and work instructions. It also supports HDMI output, allowing for multi-screen configurations when combined with external displays. With an IP65 front panel, it can be safely used in environments exposed to water droplets and dust. It is also suitable for remote updates via network, enabling smooth integration with signage management systems.
Inquire About This Product
basic information
【Maximum Resolution】1366×768 / 1920×1080 【Display Colors】16.2M/16.7M 【Brightness (cd/m²)】400/450 【Viewing Angle (H-V)】170/130, 178/178 【Touchscreen】Projected capacitive multi-touch 【Memory】DDR5 4800 MHz SO-DIMM slot ×1 (up to 96GB) (sold separately) 【Storage】2.5-inch SATA ×1 (SATA 6Gb/s) / Full-size mPCIe 1 (PCIe [x1] / SATA compatible) (sold separately) 【Expansion】M.2 3052 B-Key ×1 with Nano SIM, M.2 2230 E-Key ×1 【I/O】USB 3.2 Gen 2 (Type-A) ×2, USB 2.0 ×2, RS-232/422/485 ×2, HDMI 1.4b ×1, 2.5GbE ×3, Power switch ×1 【Supported OS】Win 10/11 【Dimensions (W×D×H) (mm)】420×264×73 【Power Input】DC 9~30V (terminal block) 【Mounting Method】Panel mount/VESA 100 *Memory, storage, and OS sold separately.
Price information
Open price
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, game consoles, controllers, data loggers, and many others.
Line up（5）
| Model number | overview |
|---|---|
| 【OMNI-2155HTT-ADN-A1】 | 15.6-inch fanless touch panel PC with Intel N50 processor, DC 9~30V, 170° (H)/130° (V), capacitive touch model. |
| 【OMNI-2155HTT-ADN-A2】 | 15.6-inch fanless touch panel PC equipped with Intel N97 processor, DC 9~30V, 170° (H)/130° (V), capacitive touch model. |
| 【OMNI-2155HDT-ADN-A1】 | 15.6-inch fanless touch panel PC with Intel N50 processor, DC 9~30V, 178° (H)/178° (V), capacitive touch model. |
| 【OMNI-2155HDT-ADN-A2】 | 15.6-inch fanless touchscreen PC with Intel N97 processor, DC 9~30V, 178° (H)/178° (V), capacitive touch model. |
| 【AC adapter set for OMNI-2155-ADN】 | OMNI-2155-ADN with AC adapter + cable set |
