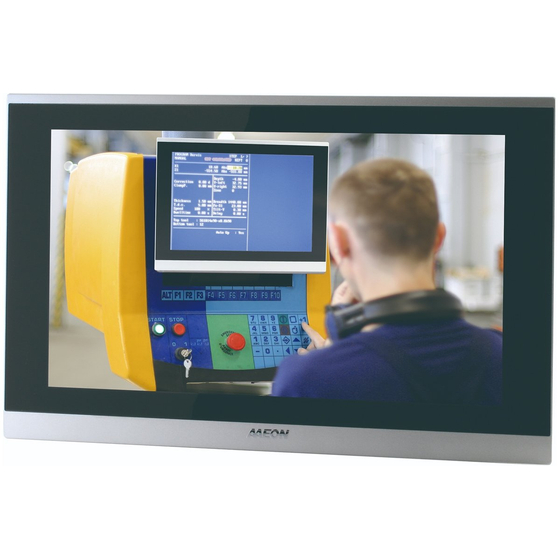

High-resolution display for clear inspection results! 15.6-inch panel PC for inspection equipment with excellent expandability.
For monitoring purposes of inspection equipment, the OMNI-2155-ADN can clearly display measurement values, images, and graphs with its 1920×1080 resolution and wide viewing angle panel. Communication and I/O expansion are possible through M.2 B-Key/E-Key and mPCIe, allowing for flexible system configuration tailored to the inspection equipment. It reliably operates important functions for the inspection process, such as real-time monitoring and abnormality display, providing strong support for on-site quality management.
Inquire About This Product
basic information
【Maximum Resolution】1366×768 / 1920×1080 【Display Colors】16.2M/16.7M 【Brightness (cd/m²)】400/450 【Viewing Angle (H-V)】170/130, 178/178 【Touchscreen】Projected capacitive multi-touch 【Memory】DDR5 4800 MHz SO-DIMM slot ×1 (up to 96GB) (sold separately) 【Storage】2.5-inch SATA ×1 (SATA 6Gb/s) / Full-size mPCIe 1 (PCIe [x1] / SATA compatible) (sold separately) 【Expansion】M.2 3052 B-Key ×1 with Nano SIM, M.2 2230 E-Key ×1 【I/O】USB 3.2 Gen 2 (Type-A) ×2, USB 2.0 ×2, RS-232/422/485 ×2, HDMI 1.4b ×1, 2.5GbE ×3, Power switch ×1 【Supported OS】Win 10/11 【Dimensions (W×D×H) (mm)】420×264×73 【Power Input】DC 9~30V (terminal block) 【Mounting Method】Panel mount/VESA 100 *Memory, storage, and OS sold separately.
Price information
Open price
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection equipment, digital signage, gaming consoles, controllers, data loggers, and many more.
Line up（5）
| Model number | overview |
|---|---|
| 【OMNI-2155HTT-ADN-A1】 | 15.6-inch fanless touch panel PC with Intel N50 processor, DC 9~30V, 170° (H) / 130° (V), capacitive touch model. |
| 【OMNI-2155HTT-ADN-A2】 | 15.6-inch fanless touchscreen PC with Intel N97 processor, DC 9~30V, 170°(H)/130°(V), capacitive touch model. |
| 【OMNI-2155HDT-ADN-A1】 | 15.6-inch fanless touch panel PC with Intel N50 processor, DC 9~30V, 178° (H)/178° (V), capacitive touch model. |
| 【OMNI-2155HDT-ADN-A2】 | 15.6-inch fanless touchscreen PC with Intel N97 processor, DC 9~30V, 178°(H)/178°(V), capacitive touch model. |
| 【AC adapter set for OMNI-2155-ADN】 | OMNI-2155-ADN with AC adapter + cable set |
