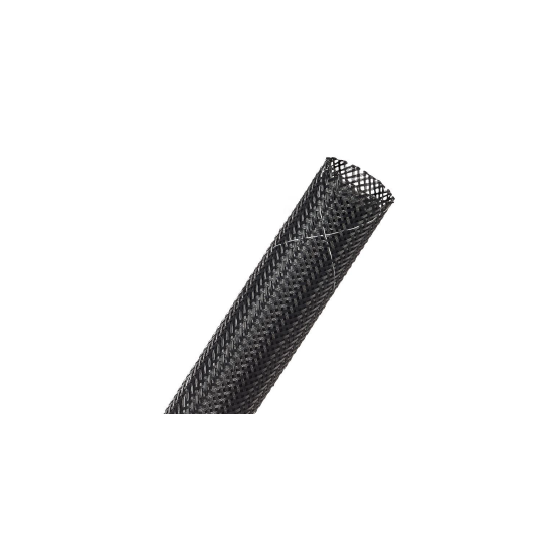

Flame-retardant high-density PET sleeve developed at the request of an aircraft manufacturer.
Lightweight and wear-resistant achieved through high-density braiding of 0.23mm thread! Ensures reliable protection for wiring in aviation, railways, and industrial equipment.
The "flame-retardant high-density PET sleeve" is a braided sleeve developed as an alternative to the standard grade flame-retardant PET sleeve. The material is tightly braided using 0.23mm flame-retardant monofilament instead of our standard 0.25mm monofilament. It achieves both lightweight and abrasion resistance, which are critical challenges in the aerospace industry. It complies with combustion standards VW-1 and FAR-25, and is also certified to the railway standard DIN EN 45545-2. It can be used for wire harness protection and aircraft cable protection. 【Specifications】 ■ Material: Made of polyethylene terephthalate ■ Operating temperature: -70℃ to 125℃ (melting point 250℃) ■ Combustion standards: VW-1, FAR-25 ■ Railway standard: Certified to DIN EN 45545-2 ■ Color: TW/TB *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Model Lineup】 ■H674-F9T0.13 ■H674-F9T0.25 ■H674-F9T0.31 ■H674-F9T0.50 ■H674-F9T0.56 ■H674-F9T0.75 ■H674-F9T1.00 ■H674-F9T1.25 ■H674-F9T1.50 ■H674-F9T1.75 ■H674-F9T2.00 ■H674-F9T2.25 ■H674-F9T2.50 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
Company information
Hagitech Co., Ltd. is a pioneer in various types of tubes. We handle tubes made from all kinds of materials, including stainless steel, aluminum, titanium, copper, brass, iron, rubber, and plastic. If you have any inquiries such as "Can you make this type of tube?" or "I'm having trouble with this...", please feel free to contact us. Our company aims to continuously supply timely products that meet the needs of the times, such as "new products," "easy-to-use products," and "convenient products," through our website, with the goal of becoming a company that is helpful to society.
