We can provide guidance on appropriate arrangements and control examples based on the user's conditions!

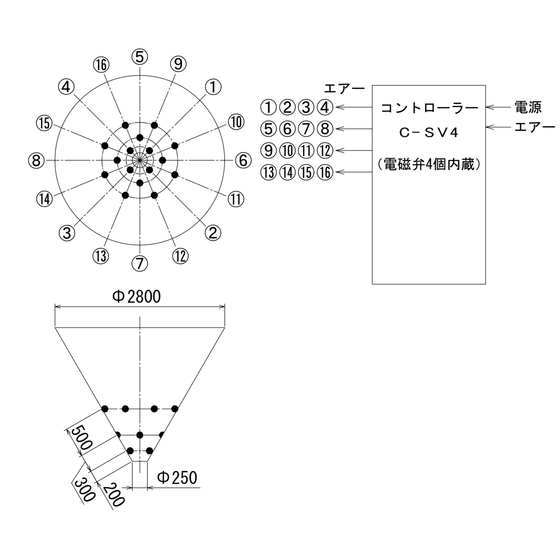

In the newly installed silo, to avoid unstable powder discharge and prolonged discharge times, we adopted a blow disk, and we would like to introduce a case where aeration was implemented as a solution. The operating temperature for this application is room temperature plus alpha, so we used a standard blow disk. This has resulted in stable operation since its introduction. Our company can provide guidance on appropriate layout and control examples based on the various conditions of our users. [Case Overview] ■ Target Material - Name: Dried Fly Ash - Specific Gravity: 0.3-0.5 ■ Silo - Diameter: Ø2800 - Discharge Outlet Diameter: 300A - (Discharge Rate: 5t/h) *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Product Specifications】 ■ Brody Disk BD-15S-B 16 pieces ■ Controller C-SV4 1 unit *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
