Focusing solution using small diameter pins for optical devices.
When it comes to small diameter pins, it's SANWA.
A small-diameter pin from Sanwa Creation that improves the light-gathering performance of optical devices.
In the optical equipment industry, precise control of light and efficient light gathering are crucial factors that influence product performance. In particular, high-precision pins are essential for the positioning of optical components such as lenses and mirrors, as even slight misalignments can affect light transmission and focal length, potentially degrading the performance of the final product. Sanwa Creation's small-diameter pins provide optimal solutions to these challenges with high precision and a variety of materials and shapes. 【Application Scenarios】 - Positioning of lenses and mirrors - Alignment of optical fibers - Assembly of optical sensors - Precision adjustment of laser equipment - Manufacturing of microscopes and telescopes 【Benefits of Implementation】 - Improved light gathering efficiency - Stabilization of optical performance - Enhanced product quality - Reduced assembly time - Improved yield
Inquire About This Product
basic information

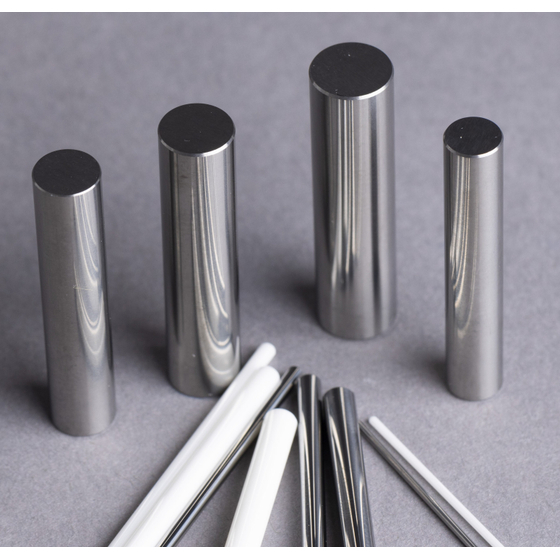

【Features】 - Micro precision machining from an outer diameter minimum of φ0.01mm - Accuracy with an outer diameter tolerance of ±0.0001mm and roundness of 0.0001mm - Compatible with a variety of materials such as carbide, ceramics, and SUS - Supports various shapes of pins (positioning pins, guide pins, pilot pins, etc.) - Quality assurance through ISO9001 certification 【Our Strengths】 Since its establishment, Sanwa Creation has utilized micro precision machining technology to provide small diameter pins that meet diverse customer needs. We have built a consistent system from material procurement to processing and inspection, ensuring a stable supply of high-quality products. We offer optimal solutions to contribute to the performance enhancement of our customers' optical devices.
Price range
Delivery Time
Applications/Examples of results
Product Names: Locating Pins, Guide Pins, Pilot Pins, Fixing Pins, Taper Pins, Sleeve Pins, Center Pins, Ejector Pins, Punch Pins, Keyway Pins, Cam Pins, Knock Pins, Knockout Pins, Core Pins, Sliding Pins, Bush Pins, Push Pins, Pin Gauges, Stack Pins, Rivet Pins, Nested Pins, Lift Pins, Insulation Pins, Carrier Pins, Alignment Pins, Wedge Pins, Coating Pins, Finger Pins, Slide Pins, Clamp Pins, Locate Pins, Roller Pins, Stamp Pins, etc.
catalog（10）
Download All Catalogs
![[Ultra-hard Measuring Tool Fine SR Processing Case] Ultra-hard Alloy](https://image.mono.ipros.com/public/catalog/image/01/662/734702/IPROS03238080410157263809.jpeg?w=120&h=170)
Company information
Our company supplies products in the form of pins and shafts made from materials such as cemented carbide and fine ceramics to major tool manufacturers, electronic component manufacturers, and automotive parts manufacturers. Additionally, we manufacture and sell PCD (polycrystalline diamond) wear-resistant tools developed in response to our internal needs. Features of Sanwa Creation: - Micro precision machining: Minimum outer diameter of φ0.01, outer diameter tolerance of ±0.0001, roundness of 0.0001 (unit: mm) - Machining capacity: Currently accepting orders from a minimum lot of 1 piece to tens of thousands of pieces on a monthly basis - Material procurement: Direct procurement of materials is possible from almost all domestic cemented carbide manufacturers. We can also procure materials from European manufacturers and Asian manufacturers in Taiwan, China, and South Korea. We can handle everything from material procurement to processing for fine ceramics as well. - Processed materials: Cemented carbide, zirconia, alumina, silicon nitride, silicon carbide, SIC, SKH51, SUS, SKD, titanium, nickel titanium, ferro-titanium, polycrystalline silicon, etc. - Inspection guarantee system: ISO 9001 certified, calibration certificates for measuring instruments can be issued upon request.
