A long-selling trigger element! Ideal as a trigger element such as a thyristor!
The BS08 series silicon bidirectional switching device is an integrated circuit that has bidirectional switching characteristics. The static characteristics are almost opposite for both directions, making it optimal for triggering various types of thyristors.
Inquire About This Product
basic information

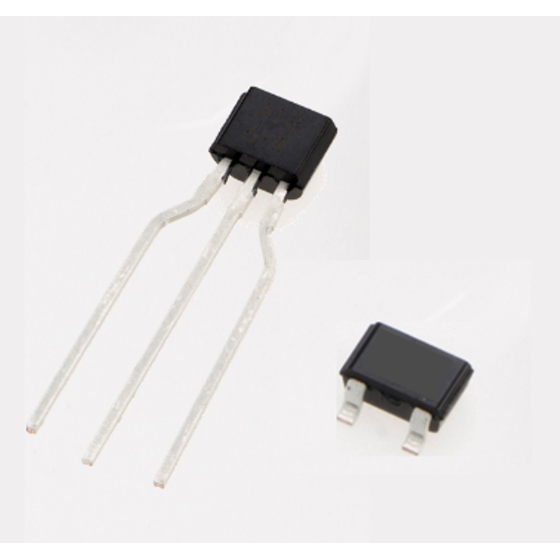

【Lineup】 BS08D PKG:TO-92S IT=175mA, P=450mW, IG=5mA, VS=7-9V, Ismax=200uA, Ihmax=1.5mA Idmax=1.0uA, Vtmax=1.4V, IGT=10-200uA, VGDmin=0.2V BS08E PKG:SC-59 IT=175mA, P=150mW, IG=5mA, VS=7-9V, Ismax=200uA, Ihmax=1.5mA Idmax=1.0uA, Vtmax=1.4V, IGT=10-200uA, VGDmin=0.2V
Price range
Delivery Time
Applications/Examples of results
Thyristor, triac trigger circuit, oscillator, timer
catalog（1）
Download All Catalogs
Company information
Isahaya Electronics began production of small signal transistors in 1973 and has evolved its semiconductor technology into design technologies for gate drivers and DC/DC converters. In recent years, the company has also focused on developing high-efficiency, high-power-factor power supply technologies to contribute to carbon neutrality. (Three-phase PFC, 1500V input compatible DC/DC converters, bidirectional converters, etc.) Meanwhile, to meet diverse needs, small signal transistors have also evolved with enhanced functionality and integration, expanding the lineup of high-voltage, high-current transistors, MOSFETs, and analog ICs.
