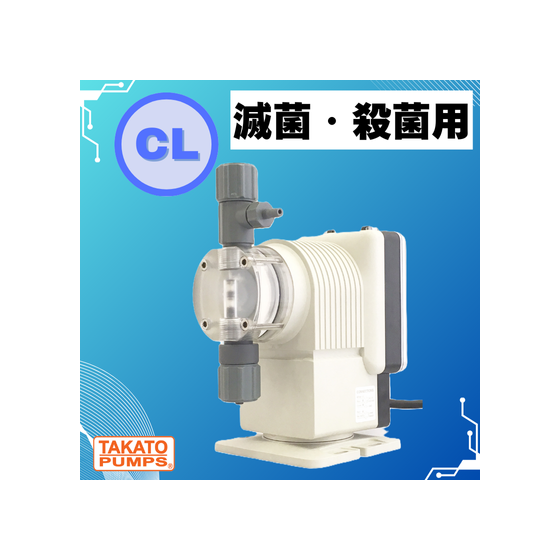

【For School Cleaning】Sterilizing and Disinfecting Solution (Hypochlorous Acid) TSP Pump CL Model
Solenoid-driven quantitative diaphragm pump TSP series CL type
A micro-dosing pump that supports hygiene management in schools.
In school cleaning environments, it is essential to accurately supply disinfectant solutions at the appropriate concentration to maintain a hygienic environment. Particularly in areas used by many people, it is necessary to maximize the disinfecting effect to reduce the risk of infectious diseases. Improper concentrations or methods of supplying disinfectants can lead to decreased effectiveness and, in some cases, may have adverse effects on human health. Our sterilization and disinfectant solution (hypochlorous acid) compatible TSP pump CL model supports school hygiene management through precise chemical injection. 【Usage Scenarios】 - Cleaning classrooms, restrooms, and hallways - Hygiene management in kitchens - Disinfection of pools and changing rooms 【Benefits of Implementation】 - Reduces waste of disinfectant solutions and controls costs - Maintains a hygienic environment with stable disinfecting effects - Improved operability through digital display
Inquire About This Product
basic information
【Features】 - Corrosion-resistant resin pump capable of transferring various chemicals - Ideal solenoid drive system for accurately delivering small amounts - Waterproof performance equivalent to IP65, suitable for outdoor use - Compatible with power supplies from 100 to 240V - User-friendly digital display 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60-CL-S: ¥90,000
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small amounts using a solenoid drive system.
Line up(1)
| Model number | overview |
|---|---|
| TSP-60-CL-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) Acrylic, PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
