Compatible with corrosive chemicals such as acids and alkalis. Reduces the risk of liquid leakage.

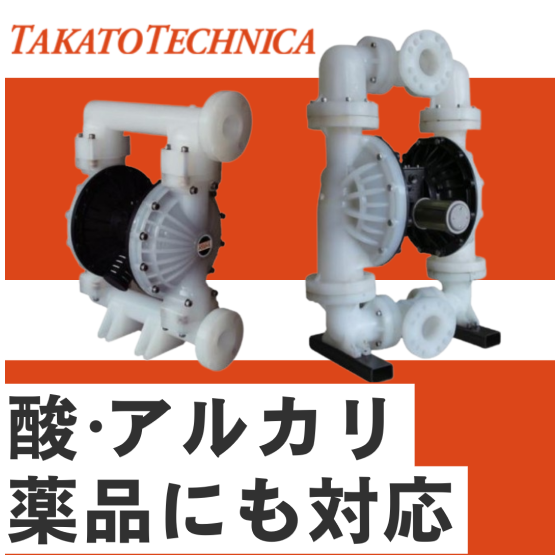

In the chemical plant industry, safety in handling corrosive chemicals is the top priority. Liquid leaks from piping not only threaten the safety of workers but also increase the risk of equipment deterioration and operational shutdowns. Takato Technica's "AODD Resin (PP/PVDF) Series" uses materials with excellent chemical resistance, reducing concerns about liquid leaks. Because it is air-driven, it can be safely used even in highly flammable solvent environments. 【Usage Scenarios】 - Transfer of corrosive chemicals - Supply to chemical tanks - Waste liquid treatment 【Benefits of Implementation】 - Reduced risk of liquid leaks - Protection of plant equipment - Ensured safety for workers
Inquire About This Product
basic information
【Features】 - Capable of transferring high-viscosity slurries - No leakage of the transferred fluid to the outside - Self-priming from dry running is possible, and it has high durability during dry operation - Easy control with a safe structure - Various material models available 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, and we can propose products tailored to our customers' needs. For more details, please check our catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the PDF document or feel free to contact us.
Line up（10）
| Model number | overview |
|---|---|
| AODD-15-PP-TPT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection diameter 1/4 (8A), connection diameter Rc male thread 15A, 20A. |
| AODD-25-PP-TPT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-PP-TPT | Maximum discharge capacity 385L/min, maximum particle diameter for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-PP-TPT | Maximum discharge capacity 587L/min, maximum particle diameter for transfer 6mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-PP-TPT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
| AODD-15-KY-TTT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection diameter 1/4 (8A), connection diameter Rc male thread 15A, 20A. |
| AODD-25-KY-TTT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-KY-TTT | Maximum discharge capacity 385L/min, maximum particle diameter for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-KY-TTT | Maximum discharge capacity 587L/min, maximum particle diameter for transfer 6mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-KY-TTT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
catalog（6）
Download All Catalogs
Company information
We are engaged in the manufacturing and sales of industrial machinery and urea water production equipment.
