Compatible with acidic and alkaline solutions, no worries about liquid leakage. For the circulation of plating process solutions.

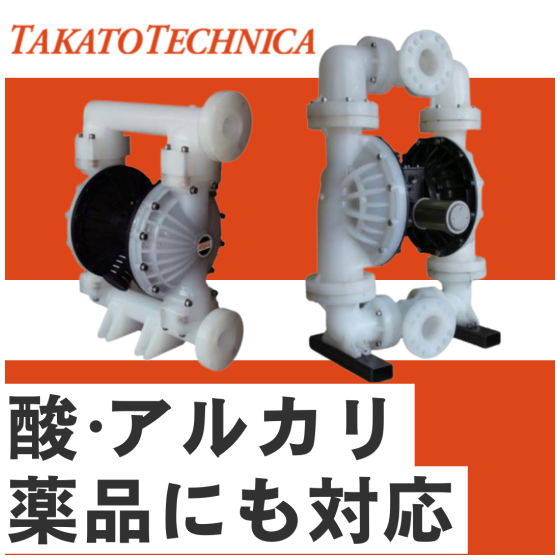

In the plating industry, the accurate circulation and management of chemical solutions are essential for product quality and process efficiency. Particularly in plating processes that use corrosive chemicals, liquid leaks and pump failures can lead to a deterioration of the working environment and production stoppages. Our air-driven diaphragm pump is compatible with acidic and alkaline chemicals, eliminating concerns about liquid leaks and solving the challenges of chemical circulation in plating processes. 【Usage Scenarios】 - Circulation of plating solutions - Supply of chemical solutions - Waste liquid treatment 【Benefits of Implementation】 - Prevents deterioration of the working environment due to liquid leaks - Reduces the risk of production stoppages caused by pump failures - Accommodates a variety of chemical solutions
Inquire About This Product
basic information
【Features】 - Capable of transferring high-viscosity slurries - No leakage of the transferred fluid to the outside - Self-priming from dry running is possible, and durability during dry running is high - Easy control with a safe structure - Various material models available 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the PDF document or feel free to contact us.
Line up（10）
| Model number | overview |
|---|---|
| AODD-15-PP-TPT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection port size 1/4 (8A), connection port Rc male thread 15A, 20A. |
| AODD-25-PP-TPT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-PP-TPT | Maximum discharge capacity 385L/min, maximum particle size for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-PP-TPT | Maximum discharge capacity 587L/min, maximum particle diameter for transfer 6mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-PP-TPT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
| AODD-15-KY-TTT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection port size 1/4 (8A), connection port Rc male thread 15A, 20A. |
| AODD-25-KY-TTT | Maximum discharge capacity 157L/min, maximum particle size for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-KY-TTT | Maximum discharge capacity 385L/min, maximum particle diameter for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-KY-TTT | Maximum discharge capacity 587 L/min, maximum particle diameter for transfer 6 mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-KY-TTT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
