We highly meet our customers' needs with an automatic inspection function that achieves "accuracy," "repeatability," and "reproducibility" in a high-dimensional manner!

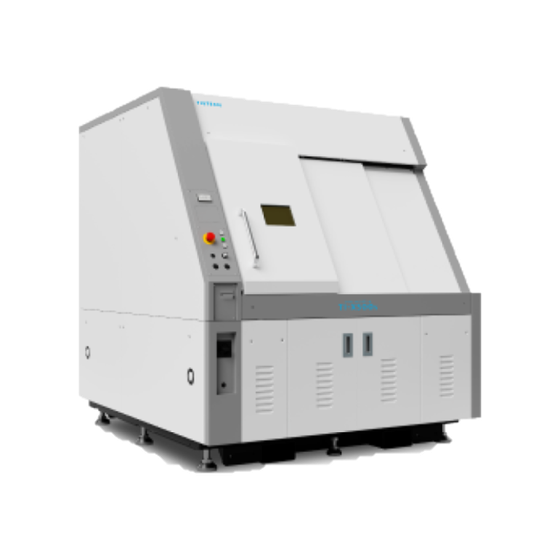

The "TI-X500s" is an X-ray inspection device that supports high-speed, high-quality 3D CT, as well as direct and angled imaging and inspections. It simultaneously achieves high speed and high quality, contributing to quality improvement in SMT assembly processes and semiconductor manufacturing processes, including defect analysis, automatic inspection of C4 solder bumps, and automatic inspection of the internal plating filling state of LTH. Additionally, we also offer the "TI-X500i," which supports inline automatic inspection. 【Features】 ■ Newly developed technology achieves high-speed throughput ■ Unique technology + high-performance hardware = further enhancement of image quality ■ A simple structure that covers direct, angled, and CT imaging *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Main Specifications (Partial)】 ■Supported Workpieces ・Size: Maximum W510×L370mm *Can accommodate up to W515×L610mm with carbon adsorption jig ・Thickness: 3mm or less ・Weight: 2kg or less ■Vertical Clearance ・Upper side: 50mm ・Lower side: 40mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
At Techno Horizon TaiTech Robotics Division, we aim to address the challenges of "labor shortages" in production sites by pursuing automation and labor-saving solutions. We will deploy safe, secure, and environmentally friendly solutions utilizing motor control technology in the FA industry to contribute to the growth and development of the manufacturing sector.
