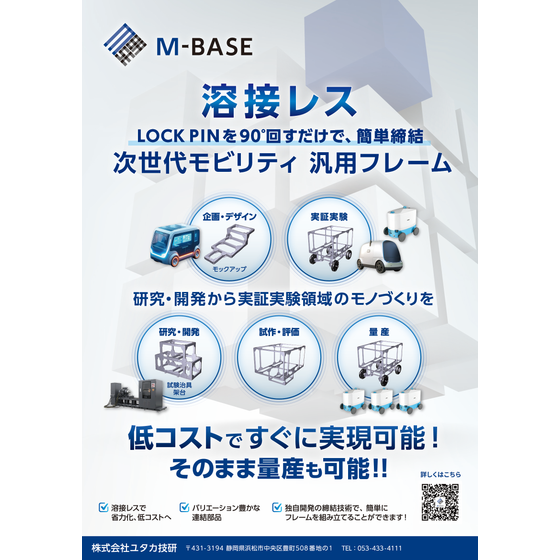

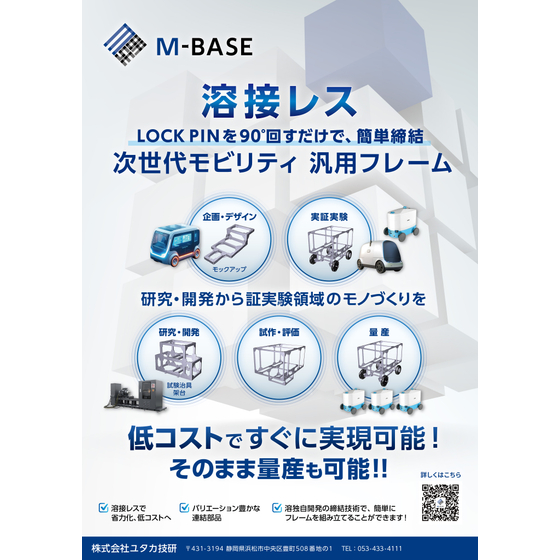

Just turn the LOCKPIN 90° for easy fastening! Firmly secured.
Next-generation mobility, such as personal mobility, green slow mobility, and delivery robots, is expected to be a solution to various regional challenges. On the other hand, as multifunctionality and diversification progress, small-scale production has become mainstream, leading to a significant increase in costs per vehicle, which poses a major challenge. To address this issue, we have developed a universal frame for next-generation mobility called "M-BASE," characterized by no welding, low cost, and easy assembly. Furthermore, through needs surveys during the development process, the potential for applications beyond the mobility sector has expanded, and we are currently promoting product development that leverages the features of the fastening structure. 【Application Scenarios】 - Personal mobility, green slow mobility, delivery robots, etc. - Concept cars, mock-ups - Assembly-type stands for testing machines (can be reconfigured according to the model) - Assembly-type carts for production sites 【Benefits of Implementation】 - Shortened production time compared to bolt assembly and welding - Reduced initial risks for assembly jigs and molds - Possible repurposing for mass production - Manufacturing costs can be reduced to about 1/2 to 1/5 compared to custom-designed welded frames (this is based on past performance data and may vary depending on specifications and quantities).
Inquire About This Product
basic information
【Specifications】 - Material: General structural steel (Tensile strength: 400MPa grade) - Coating: Cathodic electrophoretic coating (Black / Glossy) - Applicable frame sizes: 75×45 t1.6, 21×21 t1.2 *For other frame sizes, please contact us. 【Verification Results】 - Confirmed "strength durability" through repeated load testing assuming a one-person small mobility vehicle. - Confirmed "sustained fastening force" through a wear test of 10 million cycles. - Confirmed "looseness durability" through impact vibration testing. - Confirmed "weather resistance" through composite cycle corrosion testing. *For details on the verification content, please contact us.
Price information
It may vary depending on the quantity and whether additional processing is required, so please feel free to contact us.
Delivery Time
※It may vary depending on the quantity and whether additional processing is required, so please feel free to contact us.
Applications/Examples of results
[Case Studies] - E3Mobility Inc.: Movable EV charger "Ugokuccha" that requires no installation - FOMM Corporation: FOMM TWO Concept - Automobile Manufacturer: Subframe for prototype vehicles - Automobile Manufacturer: Frame for testing equipment - Automobile Parts Manufacturer: Mockup
