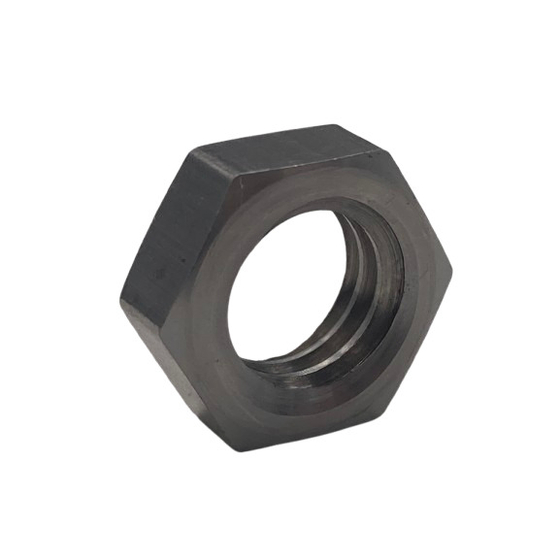

This is a thin, compactly machined stainless steel hex unify nut.
We offer two types: UNF (coarse thread) and UNF (fine thread). They are finished to be approximately 30% to a maximum of 65% thinner than commercially available products, allowing for space-saving use. The hexagonal opposite sides are not in inch standards, so you can use a standard metric wrench. Using double nuts is also effective for preventing loosening.
Inquire About This Product
basic information
■Material: SUS304 ■Screw Standard: UNC / Unified Coarse Thread ■Specifications 1/4-20 UNC ... Hexagon side 10mm, Thickness 3.9mm 5/16-18 UNC ... Hexagon side 10mm, Thickness 4.3mm 3/8-16 UNC ... Hexagon side 13mm, Thickness 4.8mm 7/16-14 UNC ... Hexagon side 17mm, Thickness 5.5mm 1/2-13 UNC ... Hexagon side 17mm, Thickness 5.9mm
Price range
Delivery Time
Applications/Examples of results
For fixing the unify screw.
Detailed information
-
Example 1 of installation
-
Example 2 of installation
Line up（5）
| Model number | overview |
|---|---|
| HNUCS1-4 | 1/4-20 UNC hexagon across flats 10mm thickness 3.9mm |
| HNUCS5-16 | 5/16-18 UNC hexagon side 10mm thickness 4.3mm |
| HNUCS3-8 | 3/8-16 UNC hexagon across flats 13mm thickness 4.8mm |
| HNUCS7-16 | 7/16-14 UNC hexagon across flats 17mm thickness 5.5mm |
| HNUCS1-2 | 1/2-13 UNC hexagon across flats 17mm thickness 5.9mm |
