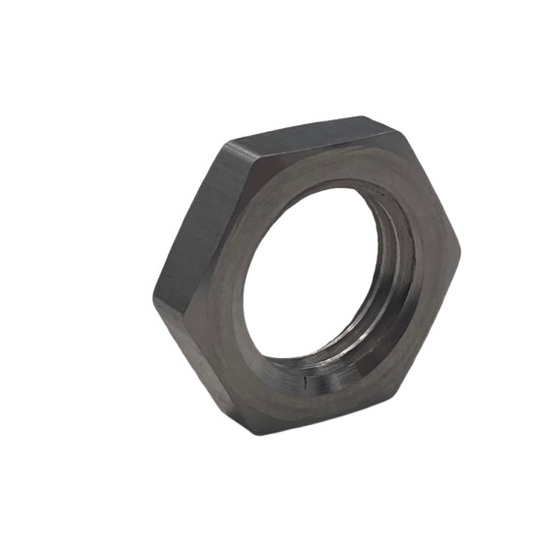

This is a thin, compactly machined stainless steel hex unify nut.
We offer two types: UNF (coarse thread) and UNF (fine thread). They are finished to be approximately 30% to a maximum of 65% thinner than commercially available products, allowing for space-saving use. The hexagonal opposite sides are not in inch standards, so general metric wrenches can be used. Using double nuts is also effective for preventing loosening.
Inquire About This Product
basic information
■Material: SUS304 ■Screw Standard: UNF / Unified Fine Thread ■Specifications 1/4-28 UNF ... Hexagon side 10mm, Thickness 2.8mm 5/16-24 UNF ... Hexagon side 10mm, Thickness 3.2mm 3/8-24 UNF ... Hexagon side 13mm, Thickness 3.2mm 7/16-20 UNF ... Hexagon side 17mm, Thickness 3.9mm 1/2-20 UNF ... Hexagon side 17mm, Thickness 3.9mm
Price range
Delivery Time
Applications/Examples of results
As a nut for a unify screw.
Detailed information
-
Example 1 of installation
-
Example 2 of installation
Line up（5）
| Model number | overview |
|---|---|
| HNUFS1-4 | 1/4-28 UNF hexagon with a side length of 10mm and a thickness of 2.8mm |
| HNUFS5-16 | 5/16-24 UNF hexagon across flats 10mm thickness 3.2mm |
| HNUFS3-8 | 3/8-24 UNF hexagon across flats 13mm thickness 3.2mm |
| HNUFS7-16 | 7/16-20 UNF hexagon across flats 17mm thickness 3.9mm |
| HNUFS1-2 | 1/2-20 UNF hexagon across flats 17mm thickness 3.9mm |
