Output torque (N·m) is 0.05 to 0.5, the starting method is lever, and the rotational speed (r.p.m) is 100 to 1000!

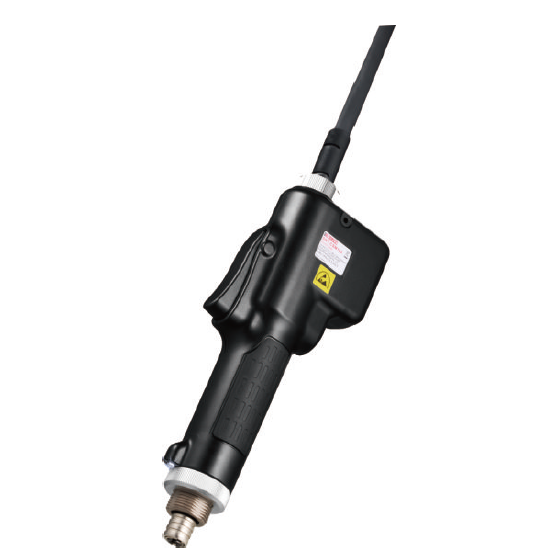

The "SNT-CSM1 Series" is a twin-sensor servo driver for micro-torque applications. It monitors the tightening process and graphs torque, angle, time, and rotational speed. You can check the tightening process with waveform diagrams. Since the data is saved, it is also possible to view past data. The product weighs 465g, has a total length of 210mm, and a power consumption of 90w. 【Features】 ■ Torque transducer type ■ Equipped with angle encoder ■ DC servo motor ■ Process management with JOB ■ Poka-yoke function *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Compatible Bit: 6.35mm Hex (Groove Position 9.5mm) ■Compatible Controller: KL-NTCS-M7 ■Output Torque (N·m): 0.05 to 0.5 ■Start Method: Lever ■Rotation Speed (r.p.m): 100 to 1000 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Since its establishment in Taiwan in 1984, Kirius has been producing electric screwdrivers at its headquarters factory in Taiwan and its factory in Shanghai. (Number of employees: 300 at the Taiwan headquarters factory, 300 at the Shanghai factory) Sales and service locations are not only in Taiwan and China but also in about 20 countries including Japan, South Korea, Singapore, Vietnam, and Thailand, as well as Europe and the United States, helping to create products that reflect customer feedback. Starting with the industry's first electric screwdriver with a built-in counter, we are committed to development and have released unique products such as ultra-compact screwdrivers and ultra-high torque screwdrivers that can handle up to 50N·m. Recently, we have launched data loggers that can record torque values and servo drivers that can tighten different torque levels, achieving reliable screw fastening with high-precision torque.
