A high-flow type has been added to the DSA series, which has low pulsation! Other liquid pumps are also available.

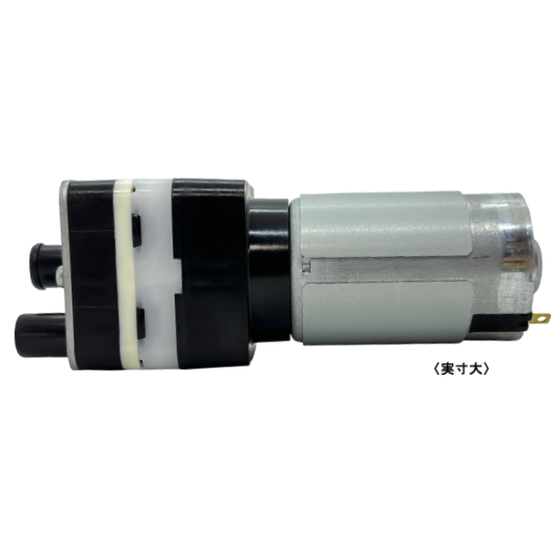

We would like to introduce our liquid diaphragm pump, the 'DSA-2S45L-24W'. This product features a four-cylinder diaphragm structure that significantly reduces pulsation and allows for the delivery of high flow rates of 6L/min. Additionally, it is self-priming and does not pose any issues regarding installation location. It complies with the RoHS directive and is manufactured in Japan. 【Features】 ■ Significantly reduces pulsation with a four-cylinder diaphragm structure ■ Capable of delivering high flow rates of 6L/min ■ Self-priming and easy to install ■ Manufactured in Japan ■ Complies with the RoHS directive *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Rated Voltage: DC24V ■Flow Rate: 6L/min ■Discharge Pressure: 250kPa (shut-off) ■Fluid Temperature: 5～40℃ TBD ■Ambient Temperature: 5～50℃ TBD ■Wetted Parts Material: SPS, EPDM ■Durability: 500h TBD ■Weight: Approximately 355g ■Self-priming: Yes *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Liquid delivery *For more details, please download the PDF or feel free to contact us.
