The design wavelength is 587.6nm (D line)! It is also suitable for use in high-temperature environments.

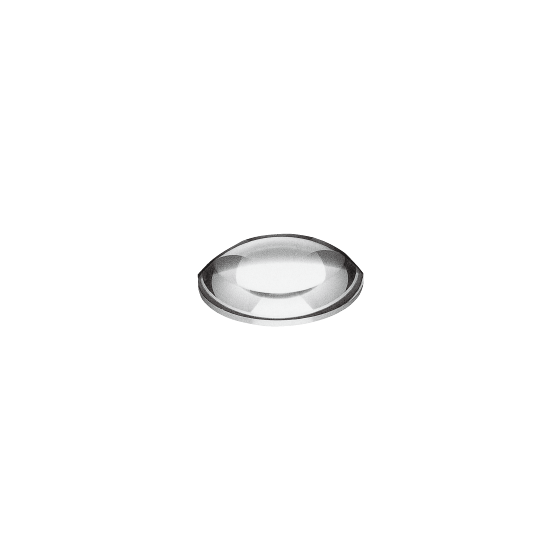

"Synthetic Quartz Plano-Convex Lens" is suitable for infinite systems, and the general usage method is to introduce a parallel light beam (or distant light source) from the convex side to minimize the occurrence of spherical aberration, using it so that the light beam emitted from the flat side converges. Our synthetic quartz material (equivalent to ES) has high transmittance in the ultraviolet wavelength range, excellent thermal expansion and thermal shock resistance, making it suitable for use in high-temperature environments. We also accept custom orders for anti-reflective coatings and other specifications. 【Specifications】 ■ Material: Synthetic Molded S.F.S ■ Refractive Index: 1.4585/nd, 1.4681/ne ■ Design Wavelength: 587.6nm (d line) ■ Chamfering (45°) → Protective chamfer available ・φ10 to φ100: 0.2mm *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
[Tolerance] ■Diameter: +0mm/-0.1mm ■Center thickness: ±0.2mm ■Focal length: ±2% ■Eccentricity: Within 3 minutes ■Surface quality: MIL60-40 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Main Uses】 ■ Enlargement of images ■ Collimation ■ Focusing applications, etc. *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
This is an optical manufacturer with over 110 years of history, originating from Sugita Glass Instrument Store founded by Tōtarō Sugita in 1906 (Meiji 39). The main business is the research and manufacturing of glass, and for many years, it has supplied a wide variety of glass products to various fields. In 1982, the company changed its name to Sugito Co., Ltd. and promoted business expansion, designing, developing, manufacturing, and selling optical elements such as optical lenses and prisms, glass products like special lenses and magnifying glasses, as well as optical products and components including macro zoom lenses, microscopes, various scopes, and inspection equipment. Additionally, in 1993, a factory was newly established in Thailand to enhance the production capacity of glass products and lenses. The company keeps standard optical elements and lens systems in stock at all times and can sell from a single unit. It also handles the design, development, and manufacturing of optical elements and lens systems according to customer requests, so please feel free to inquire.
