Suitable for applications such as magnifying lenses and focusing lenses! It is ideal for compact optical systems.

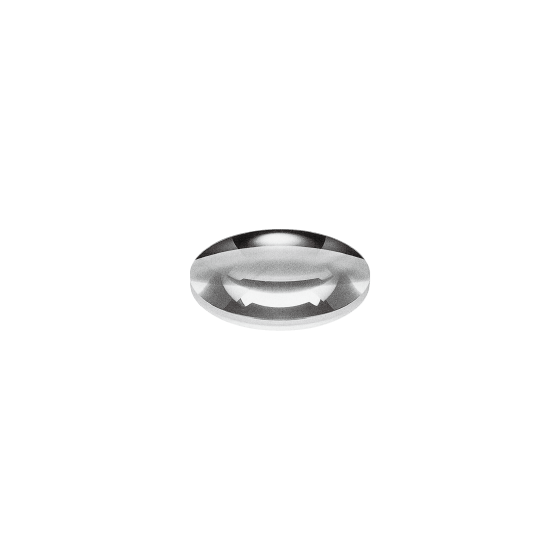

"Double convex lenses" have a positive focal point and are mainly used for magnifying images and focusing applications. Compared to plano-convex lenses, they have a stronger power to refract light, making them suitable for compact optical systems such as lighting systems, telescopes, monoculars, microscopes, binoculars, cameras, and projectors. In the case of the human eye, they are used to create virtual images, while in the case of photographic film or optical sensors, they are used to generate real images. 【Specifications】 ■Material: B270, BK-7 ■Refractive Index: B270 (1.5230/nd, 1.5251/ne), BK-7 (1.51680/nd, 1.51872/ne) ■Design Wavelength: 587.6nm (d line) ■Chamfering (45°) with protective chamfer ・φ3 to φ5: 0.1mm ・φ10 to φ100: 0.2mm *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
[Tolerance] ■Diameter: +0mm/-0.1mm ■Center thickness: ±0.2mm ■Focal length: ±2% ■Eccentricity: Within 3 minutes ■Surface quality: MIL60-40 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Main Uses】 ■ Magnifying lenses, condenser lenses, objective lenses, magnifiers, etc. ■ Image relay lenses, etc. *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
This is an optical manufacturer with over 110 years of history, originating from Sugita Glass Instrument Store founded by Tōtarō Sugita in 1906 (Meiji 39). The main business is the research and manufacturing of glass, and for many years, it has supplied a wide variety of glass products to various fields. In 1982, the company changed its name to Sugito Co., Ltd. and promoted business expansion, designing, developing, manufacturing, and selling optical elements such as optical lenses and prisms, glass products like special lenses and magnifying glasses, as well as optical products and components including macro zoom lenses, microscopes, various scopes, and inspection equipment. Additionally, in 1993, a factory was newly established in Thailand to enhance the production capacity of glass products and lenses. The company keeps standard optical elements and lens systems in stock at all times and can sell from a single unit. It also handles the design, development, and manufacturing of optical elements and lens systems according to customer requests, so please feel free to inquire.
