The outer circumference of the mounting flange has been machined with Rc1/2 threads, allowing it to be used as an external passage as well!

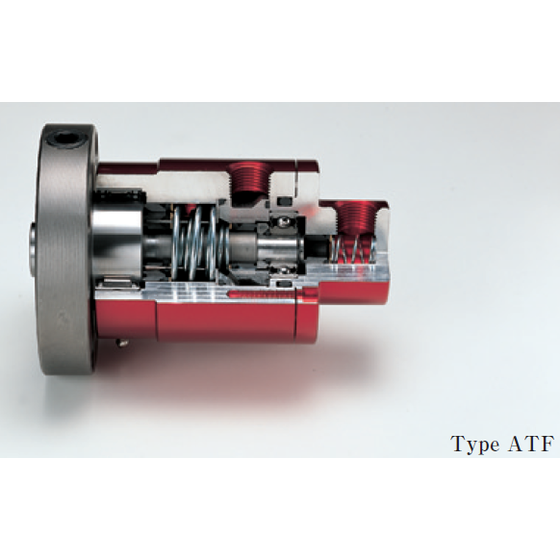

The "Type ATF" is a pneumatic three-way rotor seal capable of flowing three types of fluids simultaneously. Due to its flange mount design, it can be easily attached to the shaft end. The three inlets are machined with Rc1/2 tapered pipe threads on the side of the rotor seal body, each connecting to an eccentric fluid passage. All three passages can directly supply fluid into the rotating shaft, and since Rc1/2 threads are machined on the outer circumference of the mounting flange, it can also be used as an external passage. 【Specifications】 ■ Size: ATF-1/2 ■ Maximum Pressure (MPa): 1.05 ■ Maximum Rotational Speed (rpm): 1000 ■ Passage Area (mm²): 113.0 ■ Weight (Kg): 4.5 *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
