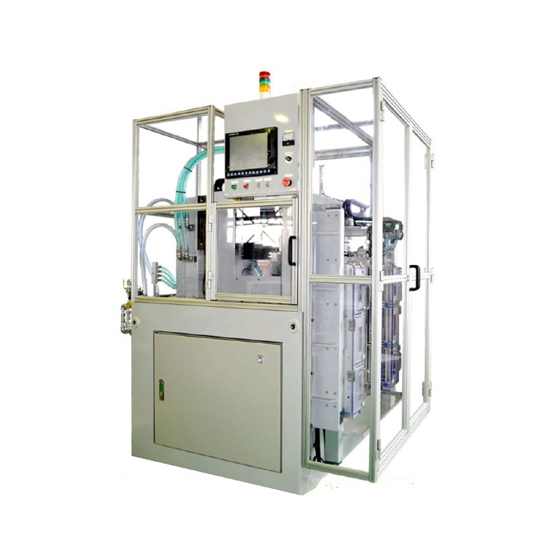

Customizable for each company: Flat glass peripheral processing machine BAV-L3 type
There are options available, and modifications can be made for work sizes beyond the specifications!
The "BAV-L3 model" is a flat glass peripheral processing machine that can be customized for each individual company. It is designed to process standard mobile glass sizes and consists of a three-axis configuration with XYZ axes. Due to its cassette-type design, it automatically handles everything from glass transport after setting to storage after processing, making it a highly productive machine intended for mass production. Particular attention has been paid to machine rigidity, allowing for processing accuracy and the capability to handle hard materials such as sapphire. 【Product Overview (Excerpt)】 ■ Model: BAV-L3 ■ Usable Work Dimensions: 50×100mm to 70×160mm, thickness 0.5 to 3.0mm (Includes square, rectangular, chamfered edges, corner R, and complex R) ■ Grinding Wheel Diameter/Speed: φ160/Max. 3,500rpm ■ Basic Structure: AC servo motor + precision ball screw + high rigidity ball guide *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Other Product Overview (Excerpt)】 ■(X-axis): Grinding wheel movement, stroke 380mm, AC servo 200w ■(Z-axis): Grinding wheel movement, stroke 150mm, AC servo 200W with brake ■(Y-axis): Table movement, stroke 300mm, AC servo 200W ■Grinding wheel shaft: Inverter-controlled 0.4kw high-frequency induction: Built-in type *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Tachino Machinery Manufacturing Co., Ltd. is a comprehensive industrial machinery manufacturer capable of handling everything from design to parts processing and procurement, assembly, inspection, and installation in a consistent manner. We have achieved numerous results in lens core processing machines and glass hard disk processing machines, providing processing machinery to many camera manufacturers and media manufacturers. We prioritize our customers' voices, continuously innovate with creativity, and strive for technological development with passion and effort, so please feel free to contact us with your requests.
