ToF camera (~approximately 20m measurement range) smart camera with AI processor
SCM-ToF2

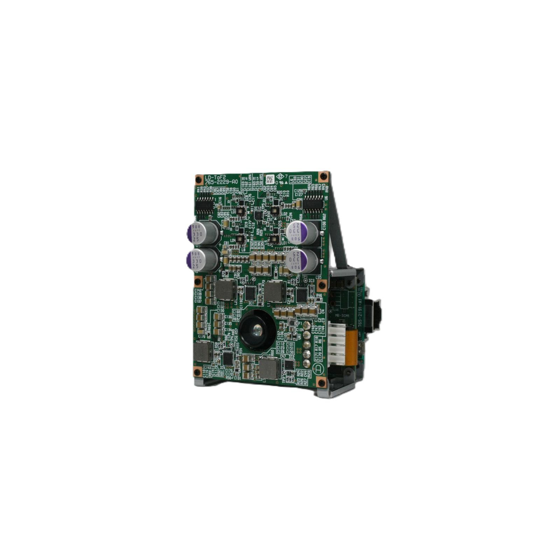

A compact ToF AI smart camera capable of long-distance ranging.
A compact AI smart camera that integrates a high-quality image sensor and image processing. It features a new ToF sensor capable of measuring distances up to approximately 20 meters. At the core of the system is the NXP Semiconductors AI processor "i.MX 8M Plus," which includes up to four 1.8GHz Arm(R) Cortex(R) A53 cores, a 2.25TOPS AI accelerator for edge AI, and an embedded ISP capable of processing images at up to 13M resolution (including AWB, AE, etc.). It can be utilized for various applications such as AGV/AMR, load recognition, logistics, fruit-picking robots, and security. *i.MX 8M Plus is a registered trademark of NXP Semiconductors N.V.
Inquire About This Product
basic information
Product Name: SCM-ToF2 Sensor: onsemi AF0130 (1/3.2 inch CMOS) Pixel Size: 3.5μm × 3.5μm Effective Pixel Count: 640 × 480 Frame Rate: 15fps Lens Mount: M12 mount (for ToF lens) Measurement Range: 0.7 to 20m Dimensions: 65 × 94 × 73.25mm - Equipped with NXP Semiconductors i.MX 8M Plus processor - Up to 4 ARM(R) Cortex(R) A53 cores - Edge AI processing with 2.25 TOPS AI accelerator - I/F: USB 3.0, HDMI, 1000BASE-T Ethernet
Price range
Delivery Time
Applications/Examples of results
AGV/AMR, robot integration, load recognition, logistics, security, motion monitoring, crowd/behavior analysis, access control, obstacle detection, intrusion detection, object tracking, fruit picking robots, etc.
