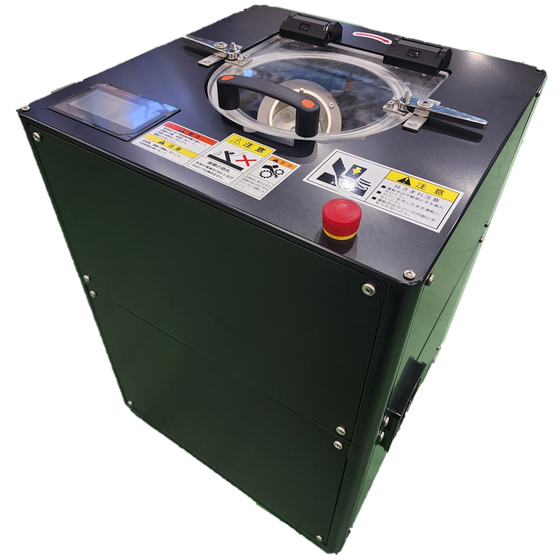

Self-rotating stirring and defoaming mixer high-low rotor series 10L & variable ratio
HR100-04VRS
We can propose a high-spec 4-cup stirring and defoaming mixer even from a mass production perspective!
The conventional high-rotor series is a high-speed rotation type with a focus on dispersion force and a self-rotation to revolution ratio of 2:1. However, this variable ratio RS type high-rotor has been developed as a high-spec model that allows independent adjustment of the rotation speeds for self-rotation and revolution in 1 rpm increments. Not only does it maintain the 2:1 ratio for high-speed self-rotation, but it also allows for settings that emphasize centrifugal force during revolution, making it possible to replicate the dispersion and degassing conditions of other manufacturers. Developed as a highly demanded 10L type for mass production, it retains the ability to accommodate four containers while being a variable ratio model. During the transition from research and development to mass production, necessary efforts and considerations can be reduced. Additionally, we can flexibly accommodate customizations such as explosion-proof features, cooling, and special containers. 【Features】 1) The 2:1 ratio for high-speed self-rotation is only possible with the high-rotor. 2) The ratio for high-speed revolution is also possible, accommodating degassing without vacuum, low-viscosity materials, and materials that are sensitive to temperature increases. 3) Customizations are available; please consult us. 4) Quietness and durability are inherited from the conventional high-rotor. 5) Scaling up from small mixers used in research and development is easily achievable.
Inquire About This Product
basic information
【Specifications】 1) Container used: 10L commercial SUS container (custom resin containers are also possible; a wide variety of containers can be used if smaller than the above) 2) Size: 200cm × 135cm × H145cm, 3000kg (vacuum pump is separate) 3) Achievable vacuum level: 100Pa (absolute vacuum) 4) Power supply: Three-phase 200V 5) Rotational speed: Orbital max 700rpm, axial max 700rpm
Price range
Delivery Time
Applications/Examples of results
Purpose: This is a mixer used for simultaneously dispersing liquids and powders in liquids while also degassing. Examples of use: Electronic material pastes, conductive and insulating pastes, thermal grease, abrasives, sealants, molding materials, adhesive materials, electrode pastes, inks, coating liquids, cosmetic bases, dental materials, medical and pharmaceutical materials, etc.
