Standard rotary encoders for space applications are supplied!!

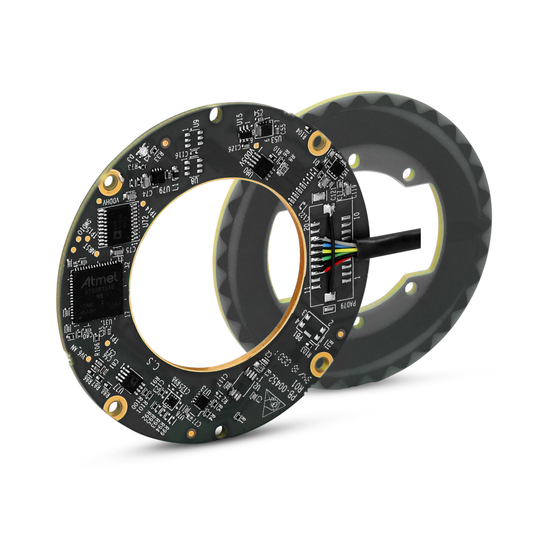

This is a hollow, thin-profile absolute rotary encoder designed for use in space environments. The catalog includes essential specifications for radiation resistance and vacuum performance required in space. The outer shape is a hollow design ranging from Φ25mm to Φ247mm, and it is a thin and lightweight encoder with a thickness of 9mm or less.
Inquire About This Product
basic information
●Radiation resistance: TID, SEE ●Outgassing compatible: Parylene conformal coating ●Outer diameter/Hollow diameter: Outer diameter Φ25mm/Inner diameter Φ2.2mm to Outer diameter Φ247mm/Inner diameter Φ171mm ●Thickness: 5.8mm to 9mm ●Weight: 8g to 220g ●Resolution: 17bit to 21bit (depends on outer diameter) ●Accuracy: ±0.006° (depends on outer diameter) ●Rotation speed: Up to 2000rpm or 4000rpm (depends on product) ●Measurement range: Single turn, software multi-turn ●Output format: BiSS-C or SSi
Price information
Please contact us.
Delivery Time
Applications/Examples of results
APT (Capture, Direction, Tracking) OISL (Optical Inter-Satellite Link) FSO (Free Space Optical Communication) DSOC (Deep Space Optical Communication) ISL (Inter-Satellite Link)
