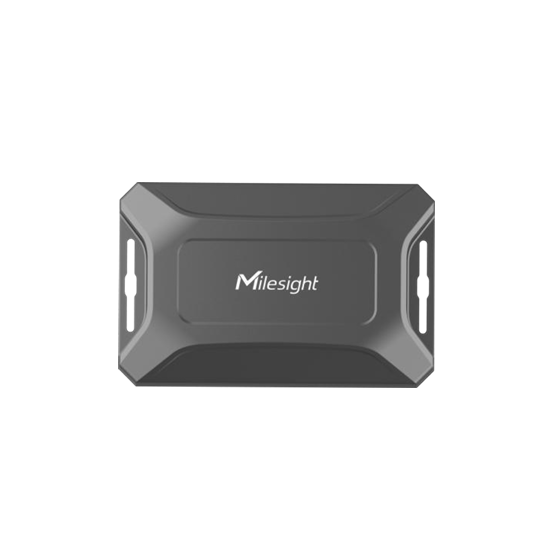

Shock-resistant, dustproof and waterproof, with geofencing capabilities, enabling advanced asset protection and tracking, with a battery life of over 15 years.
Features ■ High-precision GNSS positioning ■ Integration with Wi-Fi positioning ■ Geofencing support for asset protection ■ Provides motion/period/timing modes ■ IP67 standard for harsh environments ■ IK09 standard transceiver for impact resistance ■ Easy setup via NFC or Bluetooth ■ Over 15 years of battery life
Inquire About This Product
Related Videos
basic information
Specifications Wireless Transmission - Protocol: LoRaWAN - Tx Power: 16dBm/20dBm/19dBm Measurement GNSS Positioning - Position Accuracy (CEP): 5.0m (line of sight) - Resolution: Longitude/Latitude: 0.000001 - First Positioning Time: Cold Start: Average 37 seconds - Hot Start: Average 1 second - Reacquisition: -160 dBm - Cold Start: -148 dBm - Hot Start: -159 dBm Device Operation - Status: Normal/Inclinometer Temperature - Measurement Range: -40 to 125°C Advanced Features: Geofence, Incline Threshold Alarm, Tamper Alarm, Data Storage (1000 entries), Data Resending, Data Retrieval Function Physical Characteristics - Power Supply: 4×2700 mAh ER14505 Li-SOCl2 Replaceable Battery - Battery Life: 2 position updates per day - over 15 years (at 25°C) - Operating Temperature: -30°C to +70°C - Dust and Water Resistance Rating: IP67 - Impact Resistance: IK09 - Dimensions: 110×70×30mm - Weight: 202g (including battery) - Mounting Method: Wall screw mount, 3M tape mount, zip tie mount
Price range
Delivery Time
Applications/Examples of results
Livestock, patrol car, construction site (construction waste bin), warehouse, tracking of golf carts, current location confirmation purposes.
