FPD-Link III compatible automotive camera oToCAM220-T

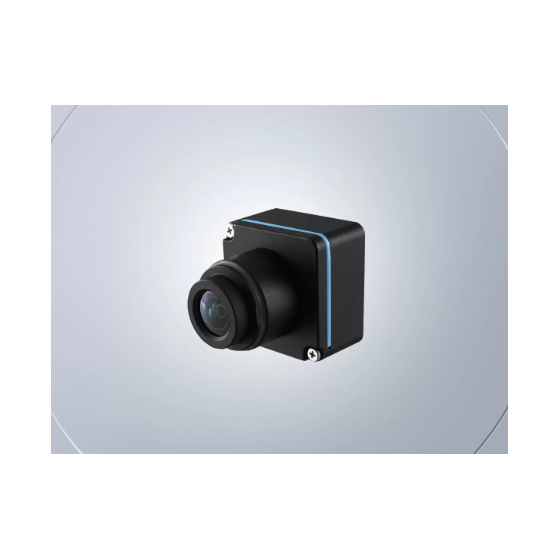

oToBrite oToCAM220-T (IMX390)
Onboard camera for autonomous driving, equipped with a 1/2.7" CMOS sensor (Sony IMX390), compatible with FPD-Link III (PoC).
**oToBrite oToCAM220-T (IMX390) Features** - Robustness and durability to withstand harsh environments - Complies with IP67 and IP69K standards: excellent dustproof and waterproof performance, vibration resistance - De-fogging function that keeps visibility clear even in humid environments or sudden changes in conditions - Extended operating temperature range: supports -40℃ to +85℃ - Advanced active alignment technology that achieves high image accuracy: significantly improves optical precision by keeping optical axis deviation to just 1 pixel. All pixels in the image maintain optimal clarity, resulting in excellent image quality - The IMX390CQV sensor features the industry's first function that simultaneously integrates HDR (High Dynamic Range) and LFM (LED Flicker Mitigation) - Provides high-contrast and stable images for automotive cameras and ADAS (Advanced Driver Assistance Systems)
Inquire About This Product
basic information
Specifications Image Sensor: CMOS (Sony IMX390) HDR: Supported LFM: Supported Optical Format: 1/2.7" Camera Effective Pixel Count: 2M (1920 (H) × 1080 (V)) Output Interface: FPD-Link III with POC Output Format: 12-bit raw data Color Filter Array: RGGB S/N Ratio: 48.5 dB Operating Voltage: DC 6~12V Startup Time After Power On: Within 200ms Exposure Control: DOL3 Serializer: TI953 Frame Rate: 30fps (depending on settings) Operating Temperature: -40 to 85℃ Storage Temperature: -40 to 95℃ Dust and Water Resistance: IP67/IP69K Field of View (H): 103° Lens F No.: F2.0 Infrared Cutoff Wavelength: 650nm Depth of Field / Shooting Distance: 1.0m to Infinity (∞) *At infinity focus Resolution: SFR: Center ≧ 60%, Peripheral ≧ 48% (@83 lp/mm) Dimensions: 28 x 28 x 31.9 mm Weight: 28.8 g
Price information
Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
Development applications for autonomous vehicles, in-vehicle testing applications, and development applications for advanced driver assistance systems (ADAS).
