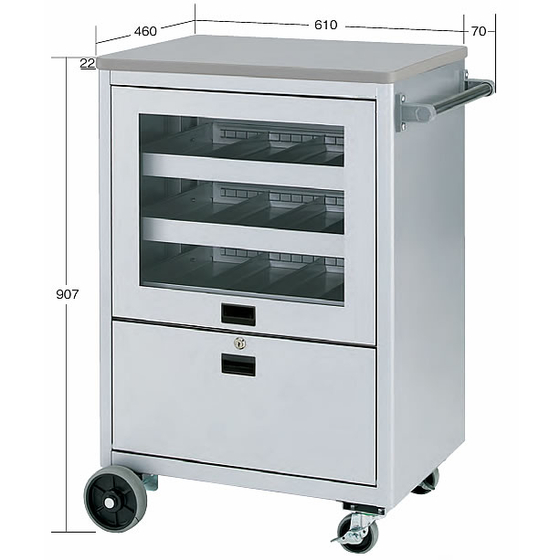

With a transparent acrylic panel (3mm thick), the inside of the drawer can be seen from the outside.
● The top board is made of melamine-faced particle board (soft edge wrapped). ● Equipped with side handles (can be mounted on either side). ● Uniform load capacity of 20kg per drawer. ● Drawer opening and closing stroke of 349mm. ● Smooth drawer operation with ball bearing slide rails. ● Each drawer comes with 3 partition boards. ● The partition boards can be adjusted at 25mm intervals. ● Comes with a lock (simultaneously locks the upper door (Kent type, magnet fixed) and the lower door (slide stay, magnet fixed)). ● Equipped with urethane casters (2 swivel casters with stopper, 2 fixed casters). ● Effective dimensions: drawer (W509×D379×H120mm) × 3-tier locker (W486×D406×H210mm). ● The casters are positioned outward, making it less likely to tip over.
Inquire About This Product
basic information
■Specifications Model Number: M39NP-649WT Partition Board: Adjustable partitions at 25mm pitch Caster: 2 swivel casters with stopper (75φ), 2 fixed casters (125φ) Effective Dimensions: Drawer (W509×D379×H120mm) × 3 tiers Locker (W486×D406×H210mm) Weight: 44kg Color: Silver Caution: To prevent danger, do not pull out more than two drawers at the same time.
Price range
Delivery Time
Applications/Examples of results
■Usage Image This is an image photo. Please do not open more than two drawers at a time. (Computer, mouse, outlet, tools, and spray cans are not included.) Recommended for use on-site with a notebook or laptop. *Please do not use in areas with a lot of dust or oil mist.
