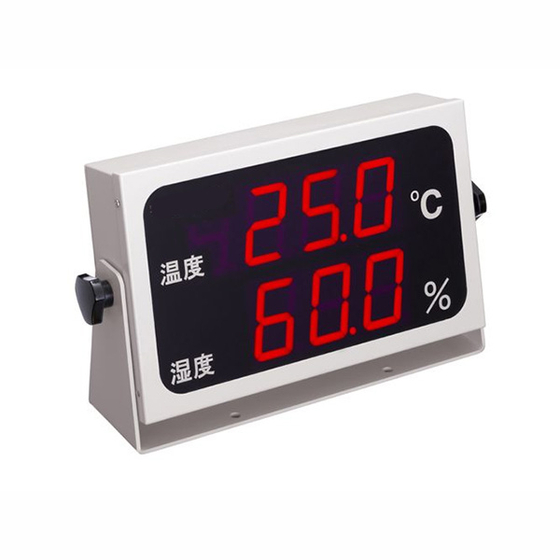

This is a digital temperature and humidity display device that uses an LED with a character height of approximately 57mm and has a direct current (DC 4-20mA) input type.
The multi-angle type allows for variable angles of the display section, increasing the flexibility of installation.
Inquire About This Product
basic information
■Specifications Model Number: MC15KM-461TRHI-9252 MC15KM-461TRHI-9257 Display Range: Temperature: -10.0 to 60.0°C Humidity: 5.0 to 99.9%rh Display Accuracy: Temperature: ±(0.2 + 1 digit)°C Humidity: ±(0.2 + 1 digit)%rh Resolution: Temperature: 0.1°C Humidity: 0.1%rh Display Sampling: Approximately 1 second *The standard is approximately 1 second, but a switchable function between approximately 1 second and 10 seconds can be added. (Please specify at the time of order) Approximately 1 second / Approximately 10 seconds (Switchable via setting switch) Display Method: 7-segment red LED, character height approximately 57mm Operating Environment: 0 to 50°C, below 85%rh (no condensation) Input/Output Connection: Terminal block Input: Temperature: DC 4 to 20mA (-15.0 to 65.0°C) Humidity: DC 4.8 to 19.98mA (5.0 to 99.9%rh) Alarm Output (Relay Contact): - Maximum Ratings - Load Voltage: Maximum AC/DC 280V - Continuous Load Current: Maximum 100mA *The standard is AC/DC specification, but it can be changed to the AC specification below. (Please specify at the time of order) Maximum Ratings - Load Voltage: AC 100 to 240V
Price range
Delivery Time
Applications/Examples of results
● This is a digital temperature and humidity display device that uses an LED with a character height of approximately 57mm, displaying temperature and humidity simultaneously. ● It is a multi-angle type, allowing for adjustable angles of the display section. ● It supports DC 4-20mA input. ● It is equipped with upper and lower limit alarm functions. (MC15KM-461TRHI-9257) * Connection to buzzers, rotating lights, etc., is possible.
