Low voltage operation, high resolution, high S/N ratio! Suitable for various position detection applications.

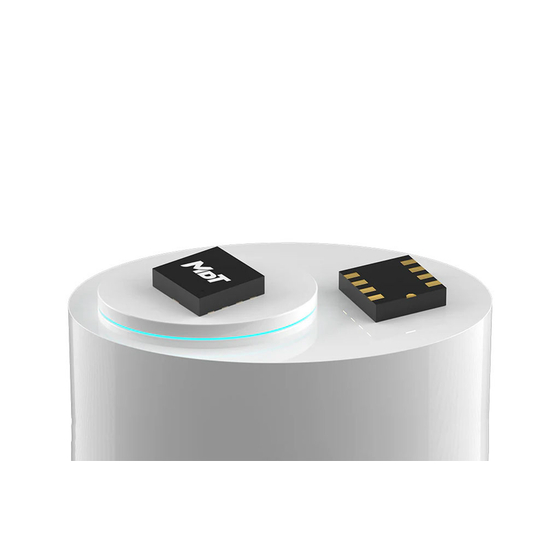

We would like to introduce our "TMR Angle Sensor Lineup" that we handle. It consists of high-sensitivity Tunnel Magnetoresistance (TMR) sensor elements, forming a Wheatstone bridge circuit. By placing a magnet above this IC, a magnetic field parallel to the chip surface is supplied. When the magnet rotates, the chip outputs a signal that changes according to the angle of the external magnetic field. This product meets customer requirements for non-contact measurement. 【Features】 ■ 360° measurement ■ Ultra-low power consumption ■ Large signal output ■ Non-contact measurement ■ Sufficient clearance *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Analog Series (Part of it)】 ■TMR3002: Power supply voltage 0–7.0V / Angle accuracy ±2.5° ■TMR3004: Power supply voltage 0–7.0V / Angle accuracy ±1.5° ■TMR3005: Power supply voltage 0–7.0V / Angle accuracy ±0.6° ■TMR3081: Power supply voltage 1.0–5.5V / Angle accuracy 0.8° ■TMR3083: Power supply voltage 1.0–5.5V / Angle accuracy 0.8° *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Application】 ■ Rotary Position Sensor ■ Non-contact Potentiometer ■ Door Knob Position Sensor ■ Flow Meter ■ Valve Position Sensor *For more details, please refer to the related links or feel free to contact us.
