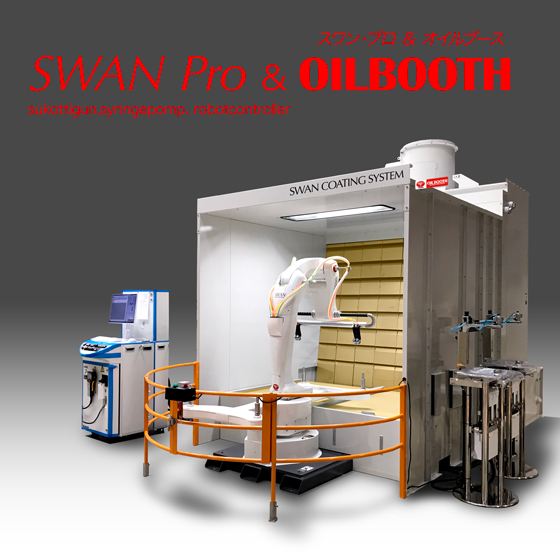

Robot and booth, paint pump in one set【Swan Coating System】
All necessary equipment for painting in one! Automation through robotic painting made easy. The Swan Coating System is a robotic painting system that combines a paint oil booth and the Swan Pro painting robot. 【A compact painting system that consolidates equipment】 An example of a combination of a standard type robot for automatic painting and a booth, eliminating the hassle of arranging painting equipment individually. A compact automatic painting system built with the painting robot "Swan Pro" and "Oil Booth." - All necessary equipment is integrated, allowing for immediate production after installation. - The quiet oil booth TB30-23 is adopted, significantly improving the working environment. *Here, automatic painting means that the painting process is performed automatically by the robot. 【Consolidation of equipment necessary for painting】 - Oil Booth: Dedicated TABO-OIL for oil booth use - Swan Pro: Explosion-proof specification, 4-axis, self-standing painting robot - Automatic Spray Gun: Scotch Gun Series R11 Gun - Syringe Pump System: Precision paint metering supply device - Robot Controller: Built-in control panel - Standard installation of Swanist: Teaching assistant software
Inquire About This Product
Related Videos
basic information
【Painting Robot: Swan Pro】 - Explosion-proof self-standing 4-axis robot "Swan Pro" - Standard equipment: Scotch gun R11 (single gun specification) - Equipped with paint supply system "One Cup System" (photo shows two-gun specification) - Standard equipment: high-precision transport device "W Turn" with rotation mechanism - Comes with a robot base for installation and movement - Equipped with a robot controller - Teaching assistant software "Swanist" pre-installed - Equipped with color-coded paint hoses by function 【Painting Booth: Oil Booth】 - Uses TABO oil - Approximately 68db low noise design - Over 30 years of long lifespan - Optional automatic paint sludge recovery device "Boss 2000" - Standard equipment: LED lighting - Standard equipment: extension hood for Swan Pro - Standard equipment: manometer - Standard equipment: oil booth control panel with built-in inverter 【Automation】 - Handling robot "Co-Swan", conveyor line (optional) - Clean room design possible (optional) with free layout
Price information
Please feel free to contact us. Sales Engineering Department Tel: 0475-50-0211 Swan Coating System Division
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
【Numerous Achievements】 A wide range of achievements in various applications, including metal products, plastic products, home appliances, automotive parts, precision instruments, inspection equipment, building materials, and more. Indium mirror coating systems are available (clean room system required). Please inquire about compatible coatings and installation space.
Detailed information
-
Swan Coating System Equipment Configuration Diagram
-
Swan Coating System Clean Room System Diagram
Line up（6）
| Model number | overview |
|---|---|
| Swan Pro | Explosion-proof painting robot |
| Oil booth - rear tank specification | Robot connection type |
| One Cup System | Precision paint dispensing device (with built-in syringe pump) |
| Dry Tech | Paint-specific dryer |
| Clean room system panel | Dust removal booth to prevent coating defects. |
| Air Jetter Mini | Mini air blow booth usable in clean rooms. |
catalog（6）
Download All Catalogs
Company information
Takubo Engineering has established technology in painting and is independently developing a painting system that reduces running costs and enhances profit effectiveness. We are developing solutions to meet the demands of improving quality, lowering painting costs, and increasing profits comprehensively and simultaneously. Thinking because it does not exist in the world Takubo Engineering independently thinks of systems that meet the needs of painting management because there are none available. We are also pursuing better ways of painting systems. ◎ We independently develop and sell painting-specific robots and painting systems. In addition to the hanging mobile explosion-proof line dancer, we have newly added a self-standing explosion-proof swan robot to our lineup. ◎ Main products: Explosion-proof painting robots: Line dancer, Swan Hot air drying furnace: Dry Tech Painting booth: Oil Booth Conveyor line: Dragon Line Explosion-proof paint supply system: Syringe pump system Automatic spray gun: Scotch Gun Small explosion-proof AC servo motor Hose-less robot IH drying system Clean room dedicated to painting Special ceramics paint UV painting system, drying system, and other painting systems
