[New Concept] Drive three-phase equipment with single-phase 200V! Ensuring power supply during outages, etc.
iGen.10000PT

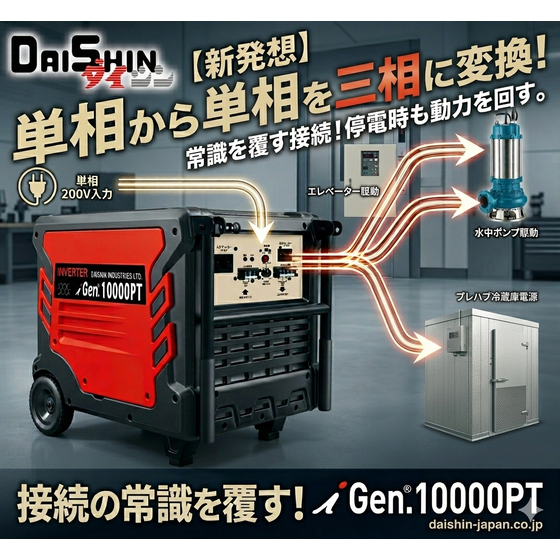

[New Concept] Drive three-phase equipment with single-phase 200V! The "iGen.10000PT" enables elevator operation during power outages and reduces power costs.
"Even though there is an emergency power supply, the elevators and commercial refrigerators do not operate" — the cause lies in the difference in specifications between the power supply (single-phase) and the equipment (three-phase). Daishin's "iGen.10000PT" is a "translator of electricity" that overturns this common understanding. The electricity that can be drawn from EVs, solar power, and storage batteries is typically "single-phase," while large equipment in buildings and factories requires "three-phase (power)." The iGen converts single-phase 200V to three-phase 200V, enabling power supply to equipment while maintaining existing infrastructure. [Reasons to Choose iGen] High output & starting current support: Achieves a rated capacity of 9.9kVA (maximum 12kVA). Thanks to a patented special circuit, it can also handle motors with high inrush currents. High-quality sine wave: With microcontroller control (P.W.M method), it can be safely used with commercial equipment that requires precise control. It resolves the resignation of "not being able to operate without a power contract" and provides new options for preparedness during power outages and cost reduction.
Inquire About This Product
basic information
【Other Specifications】 ■Circuit Method: P.W.M method microcontroller control ■Protection Circuit: Output overload protection, output short circuit protection, high temperature protection circuit ■Dimensions: W575mm × D785mm × H745mm ■Weight: 85kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
Expected Utilization Scenarios • 【BCP Measures】: During power outages, using V2H and storage batteries (single-phase) as power sources to operate elevators and water supply pumps in apartment buildings. • 【Cost Optimization】: Effective utilization of renewable energy (single-phase) at facilities that want to reduce the basic fees of power contracts. • 【Temporary/Demonstration Use】: Demonstrations and trial operations of three-phase equipment at exhibition venues or construction sites without three-phase power.
catalog（2）
Download All Catalogs
Company information
Daishin Co., Ltd. has been engaged in the business of power source-equipped machinery such as generators, pumps, and management machines for over 50 years since its founding. Among these, our uniquely developed inverter brand "iGen." has obtained various patents and utilizes the technology cultivated in the development of large inverter generators. It is combined with solar power generation, storage batteries, and V2H systems to effectively utilize renewable energy and is introduced as a measure for disaster prevention and business continuity planning (BCP). Daishin contributes to the effective use of renewable energy, BCP measures, and disaster recovery with its uniquely developed inverter technology, supporting people's lifelines.
