Instantly crushed by compression and friction forces! For adjusting the particle size of roadbed materials.

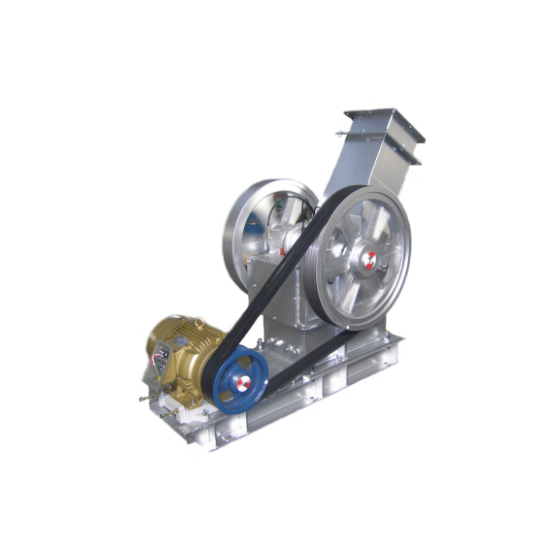

In the civil engineering industry, the quality of base materials is a crucial factor that affects the durability of roads and structures. Adjusting the particle size of base materials is essential for ensuring ease of compaction and drainage, and obtaining an appropriate particle size distribution is important for maintaining long-term stability. A single-toggle jaw crusher crushes raw materials using compression and friction forces, facilitating the uniformity of product particle size. This contributes to the improvement of base material quality. 【Application Scenarios】 - Crushing of ores, coal, limestone, etc. - Crushing of molten slag and incineration ash clumps 【Effects of Introduction】 - Uniformity of product particle size - Easy handling - High crushing ratio
Inquire About This Product
basic information
【Features】 - The structure is simple and robust, allowing for efficient crushing with a high crushing ratio. - By inserting or removing the bag liner, the product particle size can be adjusted. - When foreign objects such as iron masses get caught in the crushing chamber, the toggle plate breaks to prevent damage to other main components of the body. - The tooth plates can be easily replaced, and when worn, they can be flipped over and reused. 【Our Strengths】 Since our founding in 1913, we have focused on machinery for the powder industry, centered around crushing, grinding, classification, drying, and calcination, while also developing and manufacturing general industrial machinery for sectors such as chemicals, glass, cement, steel, and mining, as well as machinery related to environmental protection and recycling. We aim to become a trusted machinery manufacturer by solving our customers' problems.
Price information
-
Delivery Time
Applications/Examples of results
<<Uses>> - Limestone, coal, calcium cyanamide, asbestos, rock salt, mica, and other minerals - Rare metals, catalysts, etc. - Molten slag, incineration ash lumps, etc. - Glass cullet, waste materials, etc.
Line up（6）
| Model number | overview |
|---|---|
| ST-0603 | Inlet: 150mm × 75mm, outlet gap (when closed): 3–30mm, crushing capacity: 0.15–1.5t/h, motor: 3.7kW, approximate machine weight: 0.5t |
| ST-0804 | Inlet: 200mm×100mm, outlet gap (when closed): 7–40mm, crushing capacity: 0.3–2.8t/h, motor: 5.5kW, approximate machine weight: 1t |
| ST-1006 | Inlet: 250mm × 100mm, outlet gap (when closed): 10–40mm, crushing capacity: 2.1–9.2t/h, motor: 7.5kW, approximate machine weight: 1.8t |
| ST-1508 | Inlet: 380mm × 200mm, outlet gap (when closed): 10–40mm, crushing capacity: 4.2–17t/h, motor: 11kW, approximate machine weight: 3.5t |
| ST-2010 | Inlet: 510mm × 255mm, outlet gap (when closed): 15–50mm, crushing capacity: 9.6–25.5t/h, motor: 15kW, approximate machine weight: 5.8t |
| ST-2415 | Inlet: 610mm × 380mm, outlet gap (closed): 20–70mm, crushing capacity: 15.0–48t/h, motor: 19–22kW, approximate machine weight: 10t. |
