MIPI A-Phy I/F adopted ultra-compact, long-distance compatible 5M camera

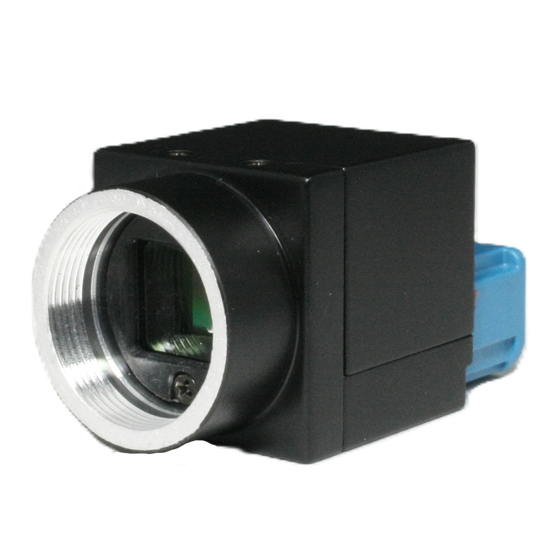

VCC-5A1M (Monochrome)
22mm square ultra-compact 5M camera capable of stable long-distance transmission.
1. Ultra-compact: Compact size of 22×22×22mm So small it can fit on the tip of your finger, making it useful for device integration. 2. High image quality: 5.1 megapixels × global shutter High definition with 2472×2064 pixels. Capable of capturing fast-moving objects without distortion. 3. High-speed shooting: Up to 96.2fps High frame rate suitable for robotics and inspection applications. 4. MIPI A-PHY compliant: Strong against noise, transmission up to 15m MIPI CSI-2 compliant, capable of long-distance transmission with a single coaxial cable. Extremely low packet error rate (PER 10⁻¹⁹) for high reliability. Stable operation even in automotive and noisy environments. 5. Automotive-grade high EMC resistance High noise resistance and environmental durability, suitable for automotive applications. 6. NF mount compatibility for compact lenses Combining with a small housing to create a space-saving optical system. 7. Power over Coax (PoC) compatible (one cable is enough) Power can also be supplied through the coaxial cable, simplifying wiring.
Inquire About This Product
basic information
Resolution: 5.1 megapixels (2472 × 2064) Sensor: IMX568 (global shutter) Sensor size: 1/1.8 inch CMOS Pixel size: 2.74 × 2.74 µm Frame rate: 96.2 fps Interface: MIPI A-PHY (MIPI CSI-2 compliant) Uplink speed: 200 Mbps Lens mount: NF mount Power supply: PoC (Power over Coax) compatible Dimensions: 22 × 22 × 22 mm Weight: 40 g Color/Monochrome: Monochrome model only (at this time)
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
Robot arms / automotive / medical / appearance inspection / dimensional inspection / integration into small devices, etc.
Line up（1）
| Model number | overview |
|---|---|
| VCC-5A1M | Monochrome |
catalog（1）
Download All Catalogs
Company information
CIS is a manufacturer of industrial imaging systems that consistently designs, manufactures, and sells various high-performance cameras, application products, and image processing IP. The product applications span a wide range, including machine vision (MV), security, medical, broadcasting, intelligent transportation systems (ITS), construction machinery, and food and pharmaceutical inspections, boasting a significant track record of OEM adoptions. Leveraging features such as compact size, high speed, high performance, high reliability, and high quality, we tackle advanced themes such as the latest digital interfaces, camera signal processing algorithms, image processing applications, and intelligent cameras, continuously developing cutting-edge products. We focus on embedded image processing development and have created the high-definition color image processing engine, Clairvu Engine. Additionally, we are advancing the commercialization of cameras that combine Clairvu Engine with 3G-SDI, HD-SDI, and CoaXPress, achieving successful adoption. Our licensing business for algorithms and image processing software has received numerous development commissions and has been well-received in the broadcasting industry, medical device industry, and construction machinery applications, among others.
