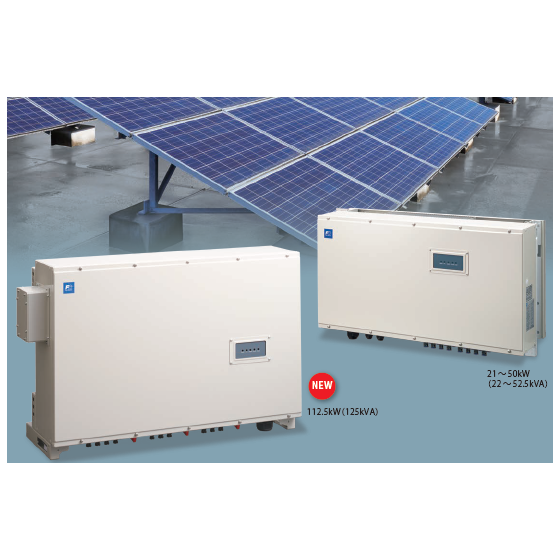

String-type PCS for solar power produced in a reliable domestic factory. Newly added 125kVA model to the lineup.
The "String Type Power Conditioner" is a decentralized solar power generation system that can accommodate a wide range of capacities, from small to large-scale mega solar installations. Thanks to SiC power semiconductors, it achieves industry-leading conversion efficiency of 99% (for the 50kW class). With multiple circuits performing MPPT (Maximum Power Point Tracking), even if some panels are shaded, the power generation of the remaining panels will not decrease. 【Features】 ■ Capable of generating power for each solar cell string ■ Industry-leading conversion efficiency of 99% (for the 50kW class) ■ High reliability with dust and water resistance (IP65) ■ Extended warranty options available ・Standard send-back warranty is 5 years ・Extended warranty up to 20 years (112.5kW) or 10 years (for 50kW and below) *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■ Rated Output: 21kW/42kW/50kW/112.5kW ■ Maximum Apparent Power: 22kVA/44kVA/52.5kVA/125kVA ■ Insulation Method: Transformer-less Method ■ Maximum Efficiency of Device: 97.7%/98.7%/99%/98.6% ■ Installation Method: Outdoor, Indoor ■ Applicable IP: IP65 ■ Cooling Method: Natural Air Cooling (21–50kW)/Forced Air Cooling (112.5kW) ■ Communication Method: RS-485 (Modbus RTU), USB (for PC Loader) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Case Study】 ■Client: Hokuriku Electric Manufacturing Co., Ltd. ■Power Generation Output: 768kVA ■Solar Power Module Output: 1,024kW ■Distributed PCS: 12 units of 50kW, 8 units of 21kW *For more details, please download the PDF or feel free to contact us.
