Experience the driving performance and ingenuity that commercial carts do not have.
Adopts high-rigidity aluminum structural materials. Lightweight and resistant to rust. Supports improvements in logistics operations.
Inquire About This Product
basic information

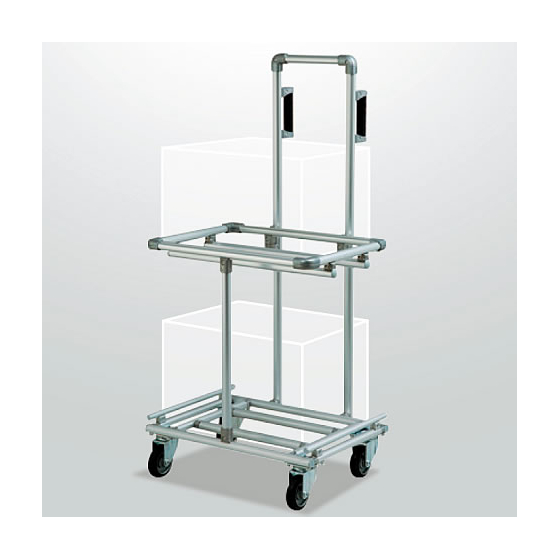

■Specifications Item Number: M1950ATP-50S M1950ATP-50W Type: Horizontal type that allows easy access to the container from the carrier side; supports pushing and pulling actions from both sides with two handles Allowable Load (※1): Upper level: 30kg Lower level: 70kg Dimensions (mm): W=596 D=474 H=1263 Ha=728 Hb=156 W=596 D=517 H=1263 Ha=728 Hb=156 Weight (kg): 10 11.5 Material: Aluminum frame 28mm A6063S-T5 JIS special grade Surface Treatment: Anodized surface finish Connector: Aluminum die-cast Caster: Wheels: Rubber Φ100, all wheels are swivel casters Fittings: Steel with plating treatment Handle: Anti-slip rubber grip
Price range
Delivery Time
Applications/Examples of results
● Convenient horizontal type for hand operations ● Designed with safety in mind ● Lightweight and rust-resistant aluminum ● Compatible containers*3 (up to 50L type) (W) 530mm or less (D) 366mm or less (H) 450mm or less *1 Price is for customer assembly (including shipping costs). We can also accommodate shipping of completed products separately. *2 The allowable load is a guideline for evenly distributed static loads. *3 Compatible containers (e) are a guideline. Please check with the external dimensions (mm) of the containers you are using.
