Ultrasonic sensors that support the prevention of contact with heavy machinery such as trucks and forklifts.
This is a heavy machinery contact prevention device that monitors the area around the vehicle with four sensors, supporting the prevention of accidents such as backing collisions and rooftop contact incidents.
Inquire About This Product
basic information

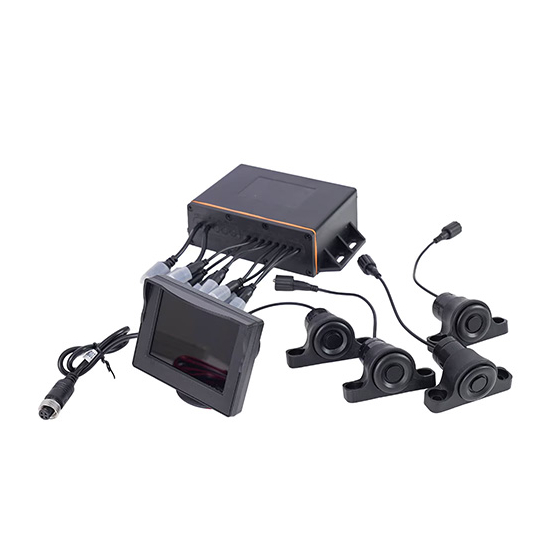

■Specifications Model Number: M1080AZB-SN25S Power Supply: 9-35V compatible, powered via cigarette socket Sensor: Ultrasonic type Response Time: 0.25 seconds per sensor Detection Angle: Approximately 60 degrees up, down, left, and right Detection Distance: 0-5m Waterproof Rating: IP67 (only for sensor and cable parts) Compatible Vehicle Types: Regular cars, trucks, large trucks, forklifts, etc. Temperature Resistance: -30 to 70 degrees Size (W×H×D): Control Box: 166×48×100mm, Display: 92.7×79.3×63.6mm Weight: Approximately 1.3kg Included Items: Control box, display, cigarette cable, 5m display cable, 4 sensors, 4 sensor attachments, Japanese instruction manual, screw set (12 sets of screws, nuts, washers, spring washers), 8 large washers Warranty Period: 12 months from the date of purchase
Price range
Delivery Time
Applications/Examples of results
● The sensor measures distance and displays it on the screen. The sensor's response time is about 0.25 seconds and can detect distances up to 5 meters. In addition to showing the distance as a numerical value, it is also displayed in a visually understandable way. An alarm sound will also notify you. ● Easy to install. Install the sensor at the rear of the vehicle, particularly in areas where collisions are a concern. If there are no issues, it is recommended to install it in four locations: bottom left, top left, top right, and bottom right. The sensor can be installed by drilling holes and using the included screws, or it can also be installed with double-sided tape. After that, simply connect it to the control box placed inside the vehicle with cables and position the display near the driver's seat.
