Suitable for replacement from conventional interfaces | Low latency | High-speed imaging up to 133fps | Low heat generation design | PoCXP support reduces the number of cables
Are you feeling limitations in frame rate, latency, and stability with USB or GigE cameras? Japan Bopixel's 8MP CoaXPress camera fundamentally resolves the challenges faced by traditional interfaces. With a high frame rate of up to 133fps*, stable uncompressed data transfer, and support for long-distance transmission, it demonstrates its true value in environments where high precision and high throughput are required. It is equipped with Sony's Pregius 2nd/4th generation, allowing for high-speed and high-resolution imaging. With PoCXP (Power over CoaXPress) support, it reduces the number of cables, contributing to simplified wiring. Furthermore, Japan Bopixel features an "UltraLowPowerFPGA," which is different from the majority of camera manufacturers, achieving low power consumption and low heat generation while maintaining a compact design. Users aiming for faster production lines, improved inspection accuracy, and space-saving inspection setups can expect benefits that exceed the costs. For those seeking "next-generation performance" from their current interface, consider replacing it with Japan Bopixel's "CoaXPress area camera." *For the 29mm square 1Lane_High-Speed Model.
Inquire About This Product
Related Videos
basic information
**Features** ■ 29mm Square 8MP 1Lane Model (MicroBNC Connector) - Equipped with SONY Pregius 4th Generation (Pregius S) - Sensor: IMX536, IMX546 - Available in Low-Speed / High-Speed, Mono / Color options - Low-Speed Version (Standard Model): 87.8fps | Supports CXP-3/-6/-10 - High-Speed Version (High-Speed Model): 133.2fps | Supports CXP-10/-12 - Compliant with CoaXPress 1.1 ■ 40mm Square 8MP 1Lane Model (DIN/MicroBNC Connector) - Equipped with SONY Pregius 2nd Generation - Sensor: IMX255 - Available in Low-Speed / High-Speed, Mono / Color options - Low-Speed Version (Standard Model): 67fps | Supports CXP-3/-6 - High-Speed Version (High-Speed Model): 93.59fps | Supports CXP-3/-6/-10 - Connector orientation: Available in Straight / Angle options - Compliant with CoaXPress 1.1
Price range
Delivery Time
Applications/Examples of results
Semiconductor front-end/back-end visual inspection, final visual inspection of semiconductor components, visual inspection of assembled boards, various alignments, industrial image processing focused on semiconductors and electronics.
Detailed information
-

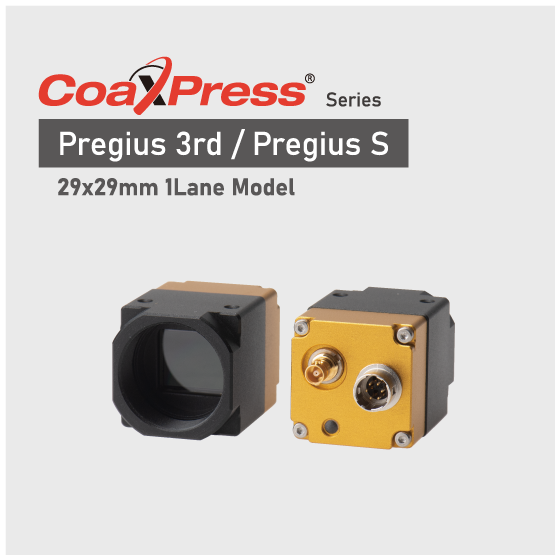

FRONT 29mm Square Series
-
REAR 29mm Square Series
-
SIDE 29mm Square Series
-
FRONT 40mm Square Series
-
REAR 40mm Square Series Straight Model
-
REAR 40mm Square Series Angle Model
catalog（4）
Download All Catalogs
Company information
We focus on the design, development, manufacturing, and sales of high-speed, high-resolution, and highly reliable machine vision cameras primarily using CoaXPress and CameraLink. In addition to developing standard products, we also offer development and customization tailored to customer requests. All camera design and development is carried out by our Japanese staff, ensuring design and production techniques that guarantee delicate and highly reliable standards in Japan, while integrating the dynamic action and speed of China to provide competitive products. At Japan Bopixel, we have successfully become the first camera manufacturer to utilize Ultra Low Power FPGA instead of the standard FPGA adopted by the majority of camera manufacturers. This Ultra Low Power FPGA reduces power consumption by over 50% compared to similar class FPGAs, significantly lowering power consumption and heat generation in cameras by addressing the heat source at its root. By actively adopting these next-generation key devices, we are taking a new approach to the heat generation issues that have traditionally been a challenge.
