Precision dispenser ADP using pipette tips - also detects liquid level!

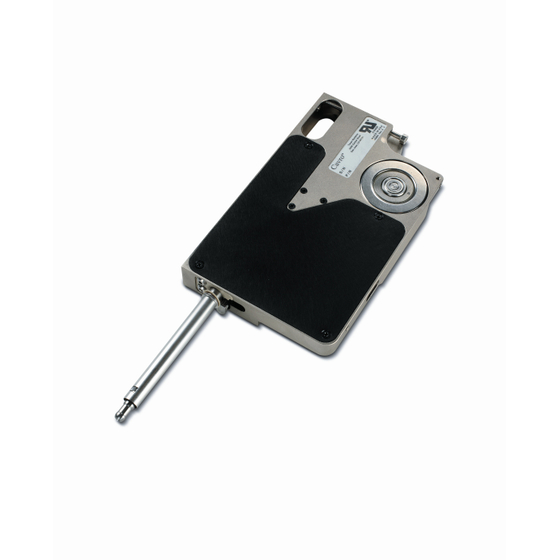

Pipette module for device integration ADP
No need for liquid path design or motor adjustments. With proven accuracy, liquid level detection, and chip eject functions, a high-throughput infectious disease analysis device is completed in a short time.
Achievements in the introduction of PCR devices for the detection of the novel coronavirus by manufacturers worldwide. Numerous implementations in high-sensitivity immunoassay devices. Short-term development of devices that reliably detect infections. - Wearable disposable chips: Chips ranging from 10μl to 1ml (liquid volume range: less than 1μl to 1000μl) can be attached using one type of unit. Grades for gene samples for PCR testing are also provided. Filters to prevent false positives in genetic testing are also available. - Easy device integration and liquid control: Communication and power supply are managed solely through the DA15 adapter. Liquid suction, discharge, and speed control can be easily managed via commands without directly controlling the stepper motor. No liquid path design is required, making adjustments simple. - Simple dispensing sequence design and operational assurance: Liquid level detection (to prevent cross-contamination and accuracy fluctuations) and automatic chip ejection can be executed with a single command. Liquid transfer operations are confirmed using an encoder. Functions for recognizing the presence of chips and monitoring pressure during liquid suction (detecting air suction, blockage from floating debris, bubble suction, etc.) ensure reliable dispensing operations. *For more details, please click the "Download Catalog" button below. ↓
Inquire About This Product
basic information
- ISO13485, reliable manufacturing and full inspection in compliance with US FDA standards. - Proven track record with gene analysis devices, sample pre-treatment, and high-sensitivity immunoassay devices. - Also provides racks for disposable tips and blood collection tubes. - Since there is no need to mount long liquid paths (tubes) on the device, it is less susceptible to variations in liquid dispensing accuracy caused by compression of system liquids or air in the tubes, as well as changes in external temperatures. - Maintenance-free design, highly cost-effective, and easy system integration. - Multiple units can be mounted on the robot's Z-arm. - Disposable tip options: 10–1000μL (with/without filter, pyrogen-free, DNA/RNA-free, etc.). - Equipped with self-diagnostic functions. - XYZ robotic arms that can be integrated are also available, allowing the entire device to be completed in a shorter time. - For CAD data (by size of mounted disposable tips), please contact us. * For detailed specifications, please click "Download Catalog" below. We also have materials prepared regarding optimal conditions for dispensing. New version ADP is now available (published on a separate site).
Price information
The price varies depending on the quantity.
Delivery Time
P1
※We maintain a certain amount of stock to ensure immediate delivery.
Applications/Examples of results
Infectious disease testing, high-sensitivity immunoassays, sample pretreatment devices, specimen dispensing and collection devices, in vitro diagnostic reagent manufacturing, chemiluminescence analysis devices, nucleic acid purification devices, surface detection and dispensing of non-conductive liquids, water quality testing, petroleum refining, food testing, semiconductor cleaning, and other manufacturing.
Line up（2）
| Model number | overview |
|---|---|
| 30041734 | Liquid level detection, pressure monitoring sensor, with disposable chip automatic eject function. |
| 30055878 | No features mentioned above. |
