Stable supply of high-precision voltage! We offer three types of PGK.

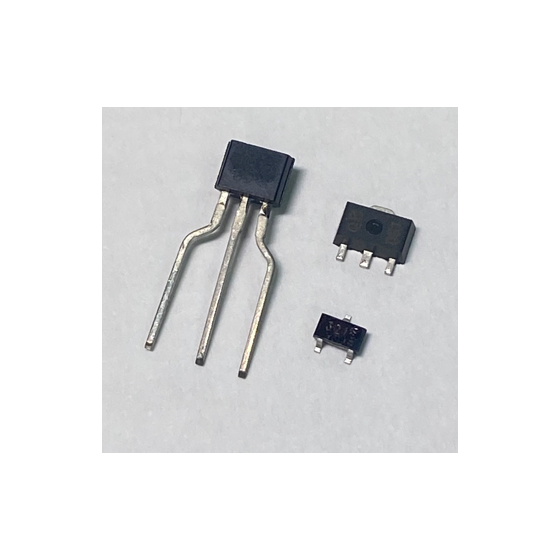

This series is a shunt regulator with a high precision reference voltage of 2.495V ±1% and a current capability of ±80mA. By connecting two external resistors to the REF terminal, it is possible to set any output voltage in the range up to 36V based on VREF. The absolute value of the dynamic impedance between the K terminal and the A terminal is low at 0.2Ω, ensuring voltage stability. This series is available in three types: two mounting types in SC-59 package (RT9H301C) and SOT-89 package (RT9H301P), and one insertion type in TO-92S package (RT9H301S). Since you can choose from packages with different sizes and mounting methods, optimizing the PCB layout is easy, greatly expanding the design flexibility. Please feel free to contact our sales team when you need assistance!
Inquire About This Product
basic information
□Features ●Reference voltage: VREF=2.495V±1% ●Output voltage setting: VREF≦VKA≦36V ●Low dynamic impedance: |ZKA|=0.2Ω ●Three types of compact packages: SC-59, SOT-89(SC-62), TO-92S
Price range
Delivery Time
Applications/Examples of results
● Standard voltage source for general electronic equipment and switching power supply
catalog（1）
Download All Catalogs
Company information
Isahaya Electronics began production of small signal transistors in 1973 and has evolved its semiconductor technology into design technologies for gate drivers and DC/DC converters. In recent years, the company has also focused on developing high-efficiency, high-power-factor power supply technologies to contribute to carbon neutrality. (Three-phase PFC, 1500V input compatible DC/DC converters, bidirectional converters, etc.) Meanwhile, to meet diverse needs, small signal transistors have also evolved with enhanced functionality and integration, expanding the lineup of high-voltage, high-current transistors, MOSFETs, and analog ICs.
